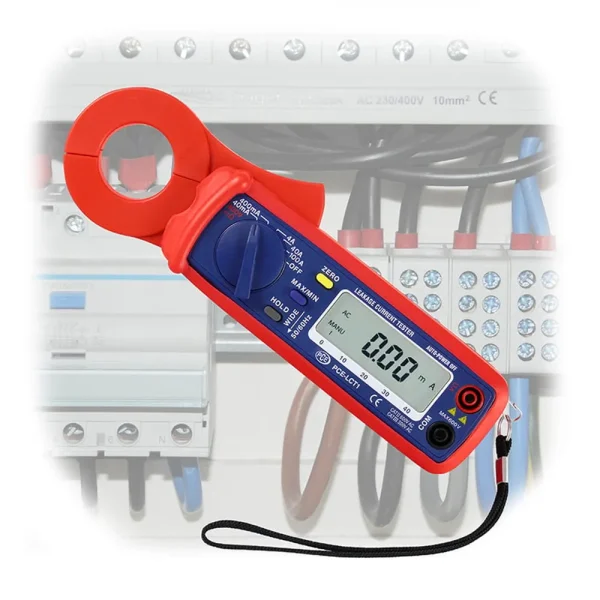

PCE Instruments Clamp Meter (PCE-LCT 1) is a versatile tool designed for measuring leakage currents, voltage, resistance, and continuity. This clamp meter detects current flow in electrical conductors and helps locate insulation failures without needing to disconnect machines, making it an essential tool for electricians and industrial inspections.
With a compact and durable design, this clamp meter measures leakage current up to 100 A and voltage up to 600 V. Its built-in rubber protection ensures durability, while the digital bar graph and high-resolution display provide clear readings.
- Specifications and Dimensions
- Leakage Current and Current (AC A):
- Measurement ranges: 40-mA, 400-mA, 4 A, 40 A, 80 A, 100 A
- Resolution: 10 µA – 100 mA
- Accuracy: ± (1% + 0.5-mA) to ± (5% + 1 A)
- Voltage (AC V):
- Measurement range: 400 V
- Resolution: 1 V
- Accuracy: ± (1.5 % + 2 digits) to ± (2 % + 4 digits)
- Resistance:
- Measurement range: 400 Ω
- Resolution: 0.1 Ω
- Accuracy: ± (1% + 2 digits)
- Alarm: Measurement value <38Ω
- General Technical Specifications:
- Display: 3 3/4
- Measured electrical properties: AC V, AC A, resistance
- Security standards: CAT III 300 V / CAT II 600 V
- Clamp diameter: 30 mm
- Input impedance: 10 MΩ
- Registration rate: 2 Hz (numerical values), 20 Hz (bar graph)
- Operating temperature: -10 … 50ºC / 14 … 122ºF
- Operating humidity: <85% RH
- Storage temperature: -20 … 60ºC / -4 … 140ºF
- Auto shut-off: After 30 minutes
- Power: 9 V battery
- Input current: 10-mA
- Weight: 200 g / < 1 lb
- Dimensions: 210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in
- Key Features and Benefits
- Measures leakage current up to 100 A for detecting insulation failures
- Voltage measurement up to 600 V ensures accurate readings
- Compact design with rubber protection for durability
- High-resolution display with a digital bar graph
- Continuity and resistance testing for electrical safety checks
- Automatic shut-off function to preserve battery life
- Designed for industrial and workshop use according to VDE standards
- Includes test cables, carrying case, and 9V battery for immediate use
