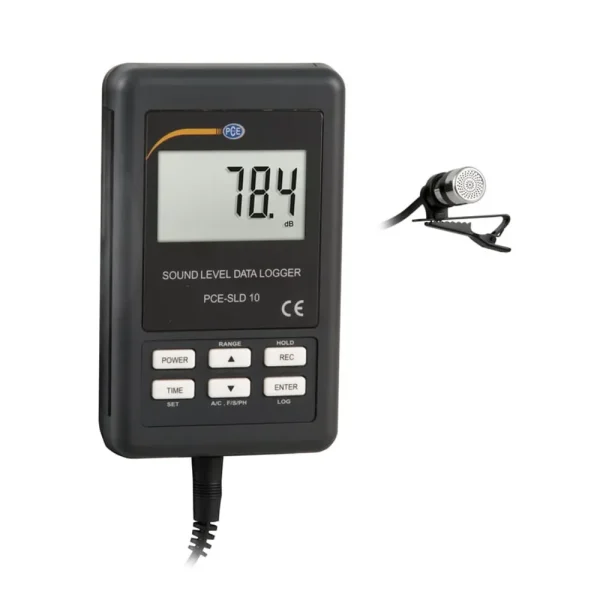

PCE Instruments Condition Monitoring Device (PCE-SLD 10)

PCE Instruments Condition Monitoring Device (PCE-SLD 10) is designed for continuous monitoring of sound levels in various environments. The device records real-time noise levels, stores the data on an SD card, and outputs analog signals for integration with external systems. The sound level data logger has a measuring range of 30 … 130 dB and allows for A or C frequency weighting.

The stored data is easily accessible via the SD card and can be analyzed without additional software. This makes it an ideal tool for monitoring industrial noise, workplace safety, and environmental noise levels.

• Specifications and Dimensions
  • Measuring Range: 30 … 130 dB
  • Measurement Accuracy: Class 2 according to IEC61672
  • Resolution: 0.1 dB
  • Frequency Weighting: A & C
  • Time Review:
    • Fast: 125 ms
    • Slow: 1 s
  • Frequency Range: 31.5 Hz … 8 kHz
  • Measurement Modes:
    • Peak Hold
    • Max-Min
    • Hold by pressing a button
  • Analog Output: 4 … 20-mA
  • Data Storage: SD card (max. 16 GB)
  • Storage Rate Options: 5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s
  • Display Refresh Rate: ~1 second
  • Interface: Serial port for live visualization (SOFT-LUT-USB cable sold separately)
  • Power Supply:
    • 6 x 1.5V AAA batteries
    • 9V / 1 A power adapter for long-term operation
  • Automatic Shutdown: After 10 minutes (disabled in power supply mode)
  • Operating Conditions: 0 … 50°C / 32 … 122°F, max. 85% RH
  • Weight: 230 g / < 1 lb
  • Dimensions:
    • Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in
    • Microphone: 12.5 x 32 mm
    • Cable Length: 120 cm
• Key Features and Benefits
  • Wide measurement range up to 130 dB for various applications
  • 4 … 20-mA analog output for system integration
  • Stores measurement data as an Excel file on an SD card
  • Fast and slow measurement modes for precise noise assessment
  • Large LCD display for clear data visualization
  • Battery or mains-powered for flexible usage
  • External microphone for accurate sound level detection
• Includes
  • 1 x Condition Monitoring Device PCE-SLD 10
  • 1 x External Microphone
  • 1 x Wall Holder
  • 1 x SD Memory Card
  • 1 x 4 … 20-mA Screw Connectors
  • 1 x 9V / 1 A Power Adapter
  • 1 x User Manual
