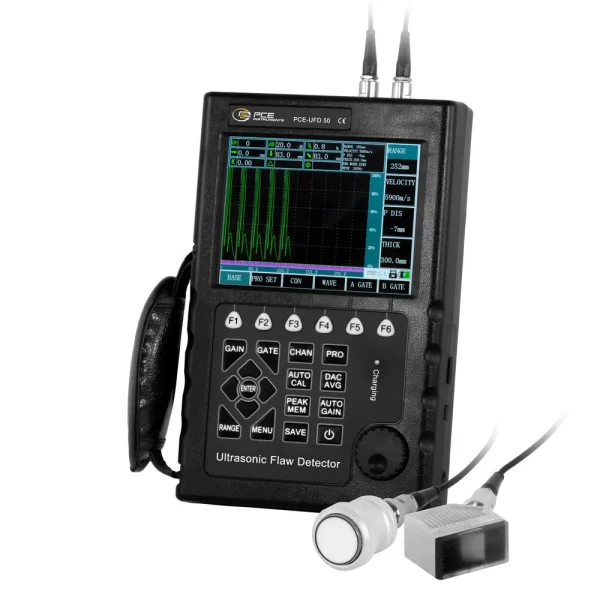

PCE Instruments Defectoscope for Non-Destructive Testing (PCE-UFD 50)

PCE Instruments Defectoscope (PCE-UFD 50) is a high-performance non-destructive testing (NDT) device designed for precise flaw detection in materials. Using ultrasonic waves, this defectoscope measures wall thickness, detects voids, and analyzes weld seams with accuracy.

The device supports DAC and AVG evaluation methods, adjustable amplification, and pulse delay functions for enhanced accuracy. With an internal memory capable of storing up to 100 data records and a USB interface for data export, this device is ideal for industrial inspections, manufacturing quality control, and structural assessments.

• Specifications and Dimensions
  • Measuring Range: 0 … 10000 mm
  • Resolution: 1 mm
  • Pulse Shift Range: -20 … +999.9 µs
  • Pulse Shift Resolution: 0.1 µs
  • Units: mm
  • Frequency Range: 0.5 … 20 MHz
  • Display Type: TFT color display
  • Display Size: 5.7 inches
  • Storage Medium: Internal memory
  • Storage Capacity: 100 parameters
  • Data Interface: Mini-USB, USB-A
  • Gain Range: 130 dB
  • Adjustable Speed of Sound: 1000 … 15000 m/s
  • Menu Languages: English (US), Chinese
  • Protection Class: IP30
  • Power Supply: 12.6 V / 2 A
  • Battery Capacity: 3600 mAh
  • Weight: 1130 g
  • Operating Conditions: -10 … 50 °C, 20 … 90% RH
  • Storage Conditions: -10 … 50 °C, 20 … 90% RH
  • Device Dimensions (L x W x H): 240 x 160 x 50 mm
• Key Features and Benefits
  • Uses ultrasonic waves for non-destructive material testing
  • Detects cracks, voids, and thickness variations in materials
  • Supports single and dual probe measurement methods
  • AVG and DAC evaluation methods for precise analysis
  • 5.7-inch TFT color display for clear test result visualization
  • Adjustable sound velocity for testing different materials
  • USB interface for easy data export and report generation
  • Compact, lightweight design suitable for mobile and industrial use
• Includes
  • 1 x PCE-UFD 50 Defectoscope
  • 1 x Vertical Probe
  • 1 x Angle Probe
  • 2 x Probe Cables (Approx. 1 m)
  • 1 x Power Supply Unit (12.6 V / 2 A)
  • 1 x Power Cable
  • 1 x Transport Case
  • 1 x Operating Instructions
