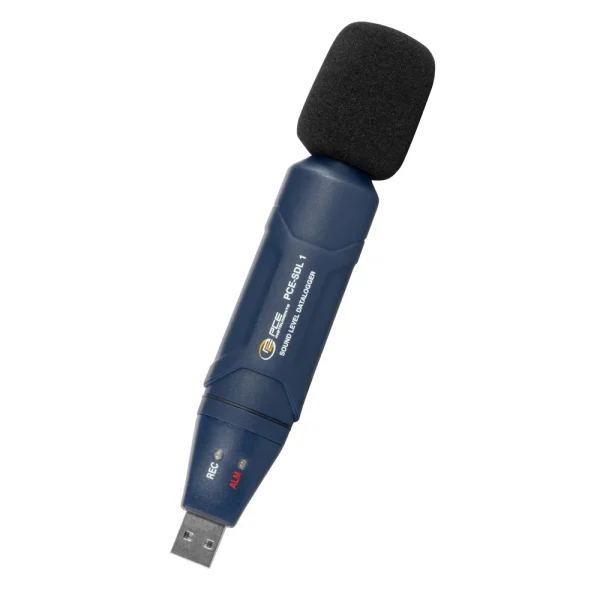

PCE Instruments Digital Class 2 Data Logging Decibel Meter (PCE-SDL 1) is a versatile tool designed for long-term noise monitoring. With a wide measuring range of 30 to 130 dB and compliance with IEC 61672-1 (Class 2) standards, this decibel meter ensures precise acoustic measurements.
It includes a USB interface for seamless data transfer to a PC, where the included Windows-compatible software enables detailed analysis. The adjustable alarm limits and LED indicators provide real-time feedback, ensuring quick identification of noise threshold breaches. Suitable for professionals requiring continuous sound level monitoring.
- Specifications and Dimensions
- Measuring Range: 30 … 130 dB
- Accuracy: ± 1.4 dB
- Standards: IEC 61672-1 (Class 2)
- Frequency Range: 31.5 Hz … 8 kHz
- Frequency Weighting: A and C
- Time Weighting: Fast and slow
- Storage Capacity: 129,920 data sets
- Measurement Rate: 1 sec … 24 hrs
- Operating Conditions: 0 … 40 °C / 32 … 104 °F, 10 … 75% RH
- Power Supply: 3.6V battery
- System Requirements: Windows 2000 and later
- Dimensions: 130 x 25 x 30 mm / 5.12 x 0.98 x 1.18″
- Weight: 20 g / 0.05 lb
- Key Features and Benefits
- Class 2 compliance for accurate noise measurements
- USB interface for seamless data transfer
- Adjustable alarm limits with LED indicator alerts
- Stores up to 129,920 data sets for long-term monitoring
- Supports A and C frequency weighting for precise readings
- Auto and manual start modes for flexible operation
- Date- and time-stamped data collection for tracking trends
- Windows-compatible software for advanced data analysis
- Includes
- 1 x Class 2 Data-Logging Decibel Meter PCE-SDL 1
- 1 x Wind noise suppressor
- 1 x Wall bracket
- 1 x Windows-compatible software
- 1 x 14250 Li battery
- 1 x Instruction manual
