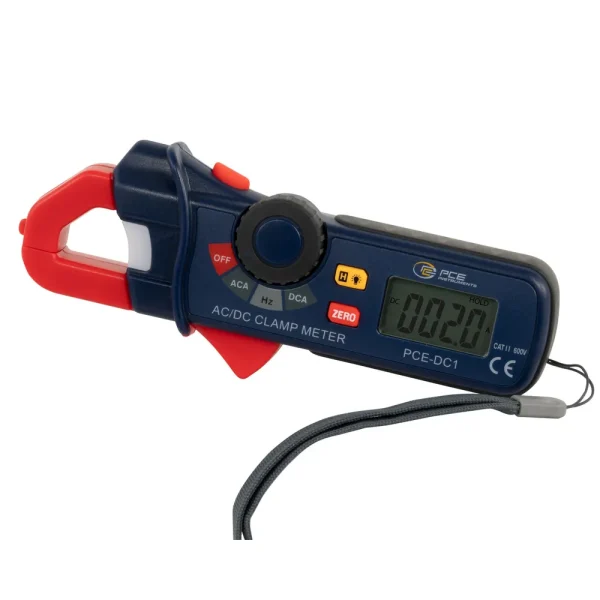

PCE Instruments Digital Current Clamp (PCE-DC1) is a compact and versatile measuring device for AC/DC current, voltage, and frequency detection. With its lightweight design and an 18 mm clamp opening, this device allows for easy measurement in tight spaces. The built-in LED flashlight and backlit LCD ensure visibility even in dim environments.
This current clamp also features a non-contact voltage test function, enhancing safety when working with live circuits. The automatic range selection, data hold, and zero reset for DC measurements provide efficiency and accuracy.
- Specifications and Dimensions
- AC Current Measurement: 200 A / 100 mA resolution / ±3.0% + 8 digits accuracy
- DC Current Measurement: 200 A / 100 mA resolution / ±2.8% + 8 digits accuracy
- Non-Contact Voltage Detection: 100 VAC … 600 VAC (50/60 Hz)
- Frequency Measurement: 40 Hz – 1 kHz (±1.2% + 5 digits)
- Clamp Opening: 18 mm / 0.7 in
- Display: Backlit LCD with white LED illumination
- Power Supply: 2 AA batteries
- Material: PVC housing
- Dimensions: 155 x 66 x 31 mm / 6.1 x 2.6 x 1.2 in
- Weight: 155 g / < 1 lb
- Key Features and Benefits
- Measures AC/DC current, AC voltage, and frequency
- Compact design for easy handling in tight spaces
- Non-contact voltage detection enhances safety
- Backlit LCD and integrated LED flashlight for visibility
- Includes
- 1 x PCE-DC1 Current Clamp
- 1 x Carrying Bag
- 2 x AA Batteries
- 1 x User Manual
