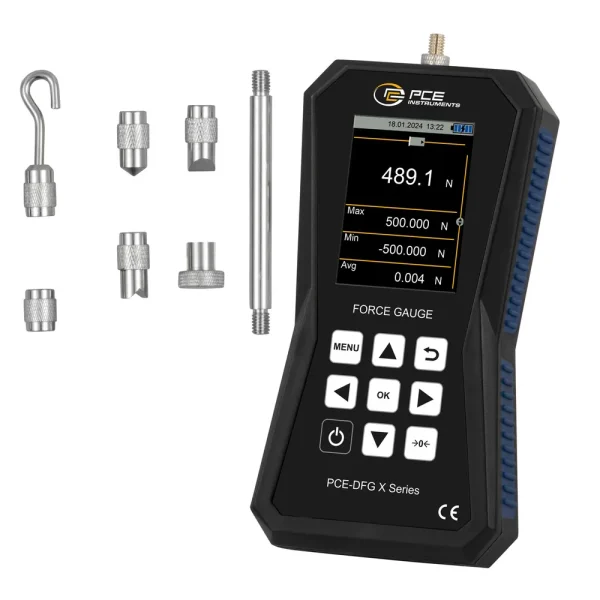

PCE Instruments Digital Force Gauge (PCE-DFG 500 X) is a precision tool designed to measure tensile and compressive forces with a capacity of up to 500 N. Ideal for laboratory and industrial applications, this force gauge ensures high-accuracy readings in testing and research settings.
The device features an internal measuring cell and supports various attachments via M6 threads, making it adaptable for multiple uses. Its 32GB internal memory stores up to 30 million measurement points, while the USB-C interface allows seamless data transfer.
- Specifications and Dimensions
- Measuring range: 0 … 500 N
- Resolution: 0.1 N
- Accuracy: ±0.05 % FS
- Display: 2.8-inch LCD with illumination
- Adjustable measurement rate: 1 … 7,200 Hz
- Memory capacity: 32GB (stores 30 million measurement points)
- Power supply: USB 5V DC, 500 mA
- Operating time: 13 hours
- Protection class: Device (IP52)
- Weight: 255 g
- Dimensions (L x W x H): 165 x 85 x 32 mm
- Key Features and Benefits
- Measures tensile and compressive forces up to 500 N
- High-capacity 32GB memory for extensive data logging
- USB-C interface for fast and secure data transfer
- Customizable alarm modes: Inside, Outside, Crack, Switch-off
- Supports multiple measurement units: N, kg, t, kN, Pa, kPa, Nm, lb, ft, g
- Graphical LCD with real-time force measurement display
- Calibration reminder ensures consistent measurement accuracy
