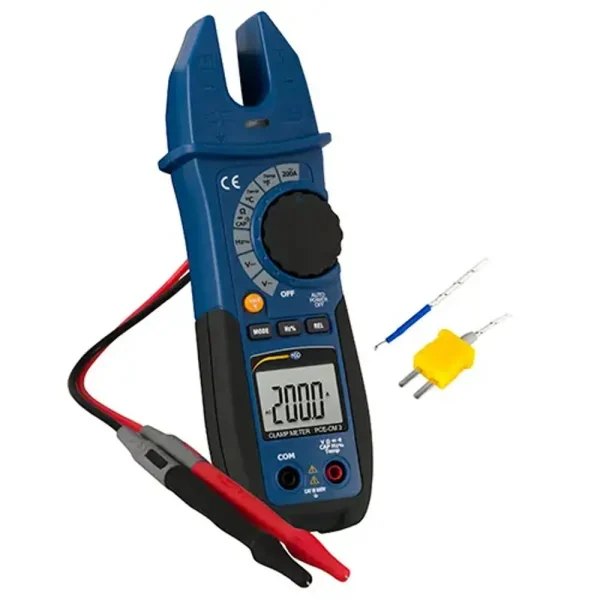

PCE Instruments Digital Multimeter with AC DC Voltage and Current Measurement (PCE-CM 3) is a compact and versatile device designed for accurate AC and DC voltage, current, resistance, and temperature measurements. With a fork clamp that supports up to 200 A AC, this digital multimeter enables quick and safe current measurements without breaking the circuit.
The illuminated LCD display ensures clear visibility in low-light conditions. Perfect for electricians, service technicians, and installers, the digital multimeter allows for efficient troubleshooting and circuit testing.
- Specifications and Dimensions
- AC/DC Voltage Range: 4V to 600V
- AC Current Range: 0 to 200 A
- Resistance Measurement: 400 Ω to 40 MΩ
- Capacitance Measurement: 4 nF to 100 μF
- Temperature Measurement: Type K thermocouple
- Jaw Capacity: 17 mm / 0.7 in
- Display: 4000-digit LCD with backlight
- Overvoltage Protection: CAT III 600V, CAT II 1000V
- Power Supply: 2 x 1.5V AAA batteries
- Automatic Shutdown: 30 minutes
- Operating Conditions: 5 to 40°C (41 to 104°F), 80% RH
- Device Dimensions: 190 x 89 x 42.5 mm (7.48 x 3.50 x 1.67 in)
- Weight: 420 g / 0.92 lbs (including battery)
- Key Features and Benefits
- Fork clamp design enables non-contact current measurement
- Supports AC/DC voltage, resistance, and capacitance testing
- Integrated temperature measurement using a Type K thermocouple
- Backlit LCD display for easy reading in low-light environments
- Battery-powered with an automatic shutdown feature for energy efficiency
- Durable, compact design suitable for field and laboratory use
- Includes
- 1 x Digital Multimeter PCE-CM 3
- 2 x Test Leads
- 2 x Measuring Tips
- 1 x Thermocouple Adapter
- 1 x Type K Thermocouple
- 2 x AAA Batteries 1.5V
- 1 x User Manual
