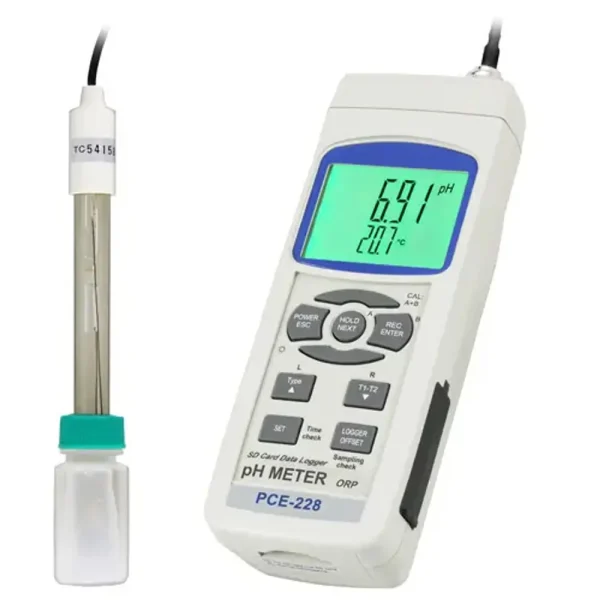

PCE Instruments Digital pH Meter with Temperature and Redox Measurement (PCE-PH 228) is a professional handheld device designed for measuring pH, redox, and temperature. This versatile meter features an easy-to-read LCD display and allows data storage on an SD card for seamless recording and analysis. The included RS-232 interface enables direct data transfer to a PC.
With automatic three-point calibration and temperature compensation, this pH meter ensures highly accurate and reliable results. The sturdy design makes it ideal for both laboratory and field applications.
- Specifications and Dimensions
- pH Measurement Range: 0.00 – 14.00 pH
- Resolution: 0.01 pH
- Accuracy: ±(0.02 pH + 2 digits)
- Redox Measurement Range: -1999 … 1999 mV (with optional Redox electrode)
- Temperature Measurement Range: 0.0 – 65.0°C / 32 – 149°F
- Calibration: Automatic three-point calibration
- Temperature Compensation: Automatic from 0 – 65°C or manual between 0 – 100°C
- Data Storage: SD card memory (1 – 16 GB)
- Interface: RS-232 for PC data transfer
- Measurement Rate: Adjustable from 1 sec to 8 hours 59 min 59 sec
- Display: Large LCD, 52 x 38 mm
- Power Supply: 6 x 1.5 V AA batteries or optional 9V mains adapter
- Operating Conditions: 0 – 50°C, max 85% r.H.
- Dimensions: 177 x 68 x 45 mm / 6.9 x 2.7 x 1.7 in
- Weight: 490 g / 17 oz
- Key Features and Benefits
- Measures pH, redox potential, and temperature in various applications
- Easy-to-read LCD with clear display of results
- Automatic temperature compensation for accurate readings
- Data logging capability with SD card memory
- RS-232 interface for seamless PC connectivity
- Sturdy design for both laboratory and on-site use
- Automatic three-point calibration ensures high accuracy
- Ideal for industrial, environmental, and research applications
- Includes
- 1 x pH Meter PCE-PH 228
- 1 x Electrode PE-03
- 1 x SD Memory Card (2 GB)
- 1 x Temperature Sensor
- 6 x AA Batteries
- 1 x User Manual
