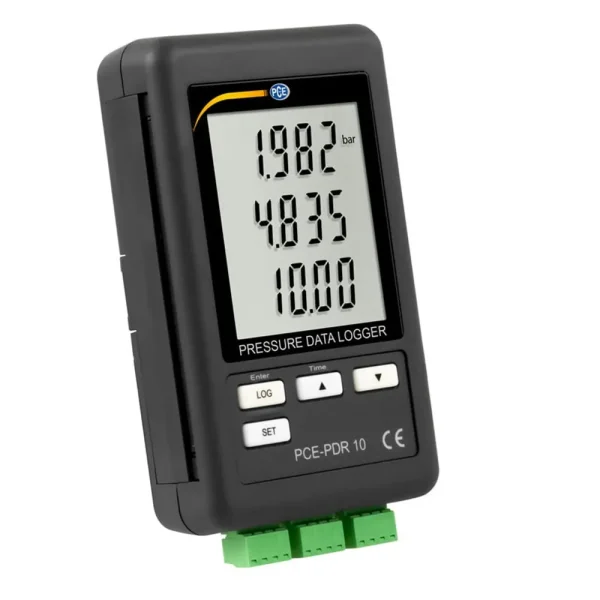

PCE Instruments Digital Pressure Data Logger with Multi-Sensor Support (PCE-PDR 10) is a professional device designed for precise pressure monitoring and data logging. Capable of connecting up to three pressure sensors simultaneously, this device ensures accurate pressure readings and efficient data collection for various applications.
The advanced storage system records only significant pressure changes, optimizing memory usage. With an SD card slot supporting up to 16GB and RS232 connectivity, data transfer and analysis are seamless. This pressure data logger provides reliable and accurate performance.
- Specifications and Dimensions
- Measuring Range: 4 … 20-mA, linear
- Measurement Accuracy: ± (0.5% + 2d)
- Measuring Rate: 1 second
- LC Display: 60 x 50 mm
- Save Interval: 5, 10, 30, 60, 120, 300, 600 seconds, auto
- Storage System: Auto mode records only significant changes (±10 digits)
- Memory Capacity: Supports SD cards from 1GB to 16GB
- Data Outputs: RS232
- Power Supply (Adapter): 9V DC
- Power Supply (Battery): 6 x AAA batteries (for clock display)
- Operating Conditions: 0 … 50°C / 32 … 122°F, <85% RH
- Device Dimensions: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3 in
- Weight: 199 g / <1 lb
- Key Features and Benefits
- Supports up to three pressure sensors for simultaneous measurement
- Advanced memory system filters out redundant data, optimizing storage
- Connects to a PC via RS232 for easy data analysis
- SD card slot supports up to 16GB for extended logging
- Wall-mountable for fixed installations or use with the included stand
- Battery or mains operation for flexible usage
- Clear LCD display for easy reading of pressure values
- Ideal for industrial, agricultural, and environmental monitoring applications
- Includes
- 1 x PCE-PDR 10 Pressure Data Logger
- 1 x 9V 1.0A Power Supply
- 6 x AAA Batteries
- 1 x Wall Mounting Bracket
- 1 x SD Card
- 1 x User Manual
