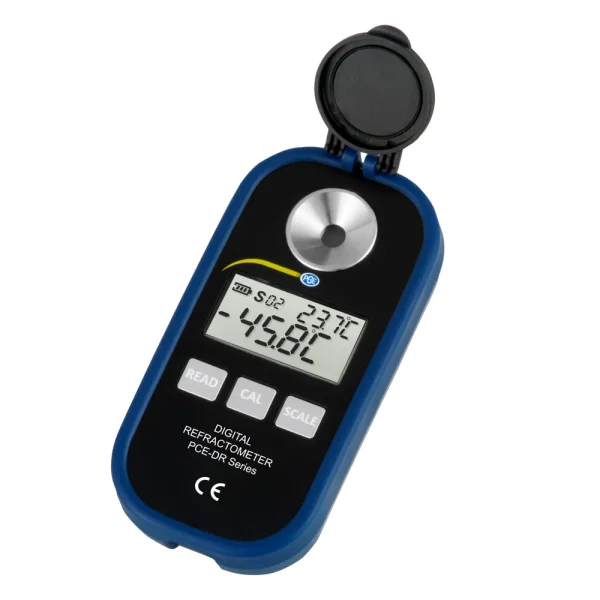

PCE Instruments Digital Refractometer is a reliable and precise measuring device designed to analyze the concentration of various liquid solutions. This handheld digital refractometer offers quick and accurate readings for different applications, including coolant, antifreeze, battery acid, sugar content, and glycol-based solutions.
Equipped with automatic temperature compensation (ATC), the refractometer ensures consistent results in varying conditions. The device features a user-friendly interface, a large LCD display, and a compact, portable design.
- Specifications and Dimensions
- Measurement parameters: Coolant, battery acid, sugar, fructose, glycol (model-dependent)
- Automatic temperature compensation (ATC): +10 … +40 °C / +50 … +104 °F
- Measurement speed: Approx. 1 second
- Sample volume: 4 to 5 drops of liquid
- Housing: ABS plastic, IP65-rated waterproof protection
- Power supply: 1 x 1.5V AAA battery
- Dimensions: Approx. 121 x 58 x 25 mm / 4.76 x 2.28 x 0.98″
- Weight: Approx. 90 g / 0.2 lb (without battery)
- Key Features and Benefits
- Fast and precise digital measurement in just one second
- Multiple measurement modes for various liquid solutions
- Automatic temperature compensation ensures accurate readings
- Large, easy-to-read LCD displays both the measurement value and temperature
- Waterproof and dust-resistant design (IP65-rated)
- Stainless steel sample well with a protective glass prism
- Internal light source for improved accuracy in different lighting conditions
- Energy-efficient with automatic power-off function
- Simple calibration with distilled water
- Compact and lightweight, ideal for field or lab use
