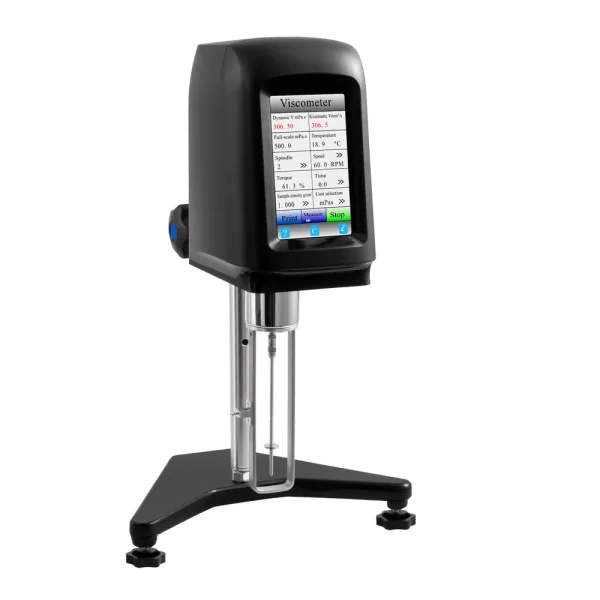

PCE Instruments Digital Rotational Viscometer (PCE-RVI 10) is designed for precise viscosity measurement in a variety of liquids. This viscometer uses a rotating spindle to determine viscosity by detecting the mechanical resistance of the fluid.
It features an easy-to-use 5-inch touchscreen display and supports multiple measurement units, ensuring flexibility across different testing environments. The built-in leveling system and adjustable height stand to ensure proper positioning for accurate results, making it a reliable tool for quality control and research.
- Specifications and Dimensions
- Viscosity Range: 10 … 2,000,000 mPa*s
- Accuracy: ±1.0% of the set measuring range
- Repeatability: ±0.2% of the set measuring range
- Rotation Speeds: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm
- Temperature Measurement Range: 0 … 100°C / 0 … 212°F
- Temperature Accuracy: 0.1°C
- Adjustable Units: mPa*s, Pa*s, dPa*s, cP, P, cPs
- Display: 5-inch touchscreen LCD
- Interface: RS232 (SUB D9) for data transfer
- Height Adjustment: Approximately 25 cm
- Power Supply: 100-240V AC, 50/60 Hz (Primary); 12VDC, 1.5A (Secondary)
- Dimensions: 430 x 320 x 275 mm
- Weight: Approx. 5.4 kg
- Key Features and Benefits
- Wide viscosity measuring range for various liquid testing needs
- High precision with ±1% accuracy for reliable results
- Integrated temperature sensor for real-time fluid monitoring
- 5-inch touchscreen interface for easy navigation and operation
- Supports multiple measurement units for flexibility
- Adjustable spindle height for optimal positioning
- Built-in bubble level for accurate alignment
- RS232 interface for data logging and analysis
- Optional L0 spindle for low-viscosity measurements down to 1 cP
