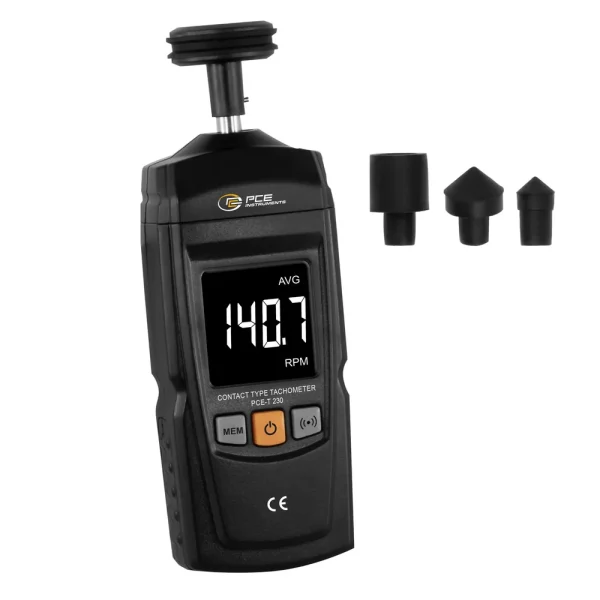

PCE Instruments Digital Tachometer with Optical and Contact Measurement (PCE-T 230) provides reliable speed measurement in various applications. With a measurement range of 0.5 … 19,999 RPM, it ensures precise readings. The device features multiple measurement units, including RPM, m/min, and ft/min, making it versatile for industrial, automotive, and engineering applications.
The PCE Instruments Tachometer is equipped with a 1.8-inch LCD screen, providing clear readings. Its measurement functions include MIN, MAX, LAST, and AVG, allowing users to track speed variations.
- Specifications and Dimensions
- Measurement Range: 0.5 … 19,999 RPM
- Resolution:
- 0.1 RPM (up to 9,999 RPM)
- 1 RPM (above 10,000 RPM)
- Accuracy: ±0.05% of Rd + 1 digit
- Measurement Units: RPM, m/min, ft/min
- Sampling Rate: 0.8 seconds
- Display: 1.8-inch LCD
- Functions: MIN, MAX, LAST, AVG
- Power: 2 x AAA 1.5V batteries
- Battery Capacity: 400 mAh
- Operating Conditions: 0 … 50°C, 10 … 90% RH
- Storage Conditions: -10 … 80°C, 10 … 75% RH
- Protection Class: IP20
- Weight: 110 g
- Dimensions: 144 x 51 x 30 mm
- Key Features and Benefits
- Measures rotational speed in RPM, meters per minute, and feet per minute
- Offers both optical and contact measurement for versatile applications
- Displays real-time, minimum, maximum, and average speed values
- 1.8-inch LCD ensures easy readability in various lighting conditions
- Automatic shut-off after 60 seconds to conserve battery life
- Compact and lightweight for easy handling
- Ideal for industrial, automotive, and maintenance applications
- Includes
- 1 x Digital Tachometer PCE-T 230
- 1 x Adaptor Wheel
- 1 x Small Measuring Tip (Outer Cone)
- 1 x Large Measuring Tip (Outer Cone)
- 1 x Hollow Measuring Tip (Inner Cone)
- 1 x Measuring Wheel Ø32 mm
- 2 x 1.5V AAA Batteries
- 1 x User Manual
