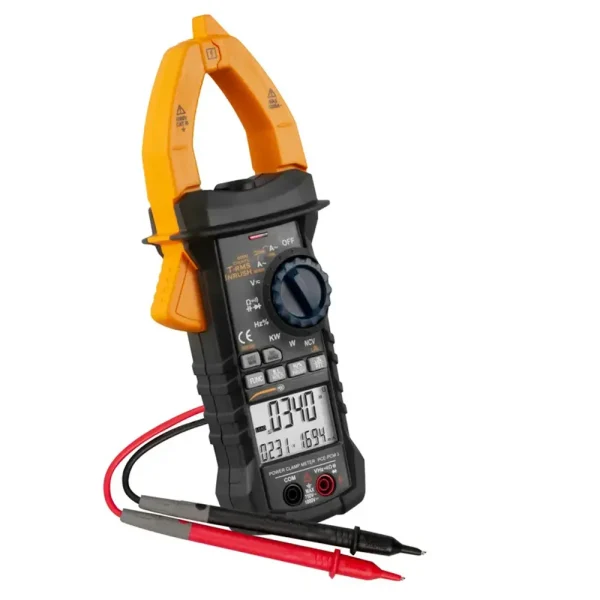

PCE Instruments Digital Voltmeter with True RMS and Bluetooth Interface (PCE-PCM 3) is a high-performance digital meter designed for precise voltage and current measurements. It features True RMS measurement, Bluetooth connectivity, and inrush current detection, making it a versatile tool for electrical professionals.
This voltmeter allows for detailed analysis of single-phase electrical systems. The integrated NCV function enables non-contact voltage detection for added safety. Bluetooth connectivity ensures seamless data transfer for real-time monitoring and documentation.
- Specifications and Dimensions
- AC Current Measurement: 60 A / 600 A / 1000 A ±2% + 8 digits
- Inrush Current: 60 A / 600 A / 1000 A ±5% + 60 digits
- Voltage Measurement DC: 6V / 60V / 600V / 1000V ±0.5% + 5 digits
- Voltage Measurement AC: 6V / 60V / 600V / 1000V ±0.6% + 4 digits
- Frequency Measurement: 10 Hz – 10 kHz ±1.5% + 5 digits
- Power Factor Measurement: 0.1 – 1 ±5% + 5 digits
- Harmonic Measurement: Up to the 20th harmonic ±3% + 10 digits
- Capacitance Measurement: 9.999 nF – 99.99 mF ±3% + 5 digits
- Resistance Measurement: 600 Ω – 60 MΩ ±0.8% + 3 digits
- Continuity Test: Acoustic signal below 50 Ω
- Duty Cycle: 0.1 – 99.9% ±0.3% + 5 digits
- Display: LCD screen with backlight
- Power Supply: 9V block battery
- Operating Conditions: 0 … 40°C (32 … 104°F)
- Dimensions: 238 x 92 x 50 mm / 9.4 x 3.6 x 2 in
- Weight: 420 g / <1 lb (with batteries)
- Key Features and Benefits
- True RMS measurement for accurate voltage and current readings
- Measures inrush current for detecting high startup currents
- Bluetooth interface for real-time data transfer and logging
- NCV function for non-contact voltage detection
- Measures apparent, active, and reactive power
- Captures voltage and current harmonics up to the 20th order
- Includes frequency, capacitance, and resistance measurement
- Backlit LCD screen for clear readings in any environment
- Compact and lightweight design for portability
- Includes
- 1 x PCE-PCM 3 Voltmeter
- 1 x Transport Bag
- 1 x Test Lead Set
- 1 x 9V Block Battery
- 1 x User Manual
