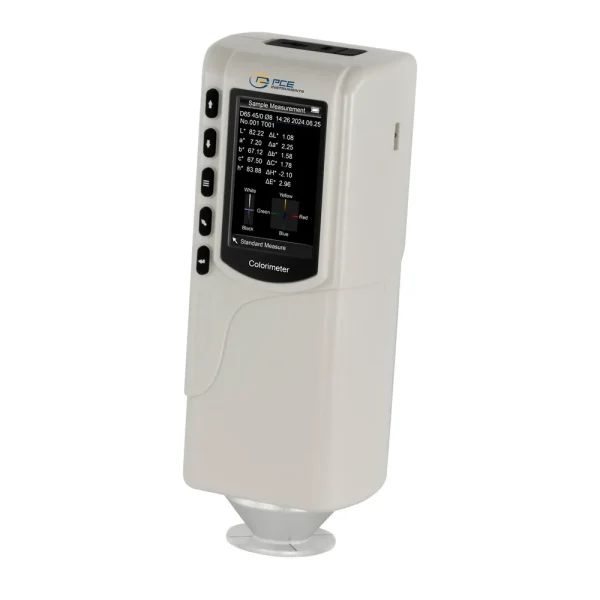

PCE Instruments Handheld Colorimeter for Industrial Applications (PCE-CSM 2) is a versatile tool designed for accurate color measurement in industrial and laboratory environments. With multiple supported color spaces, it ensures reliable quality control across various applications.
The device features a rechargeable lithium-ion battery, automatic calibration, and an ergonomic design for ease of use. Its LED light source and USB connectivity allow for efficient data transfer, making it ideal for consistent color verification in manufacturing and research settings.
- Specifications and Dimensions
- Measuring Aperture: Ø 8 mm
- Sensor: Silicon photodiode
- Color Spaces: CIEL*a*b*C*h, CIEL*a*b*, CIEXYZ
- Color Difference Formula: ΔE*ab, ΔL*ab, ΔE*C*H
- Light Source: D65
- Type of Light Source: LED
- Data Memory: 100 reference values, 20,000 samples
- Measurement Errors Between Devices: ≤0.80ΔE*ab
- Repeatability: Standard deviation within ΔE*ab 0.08
- Power Supply: 3.7V, 3200-mAh rechargeable lithium-ion battery
- Battery Operation Time: Approx. 5000 measurements
- Charging Time: 8 hours
- Lifetime of Lamp: 5 years, > 1.6 million measurements
- Operating Temperature: 0 … 40°C / 32 … 104°F
- Humidity Range: 0 … 85%, non-condensing
- Weight: 500 g / 17.6 oz
- Dimensions: 205 x 67 x 80 mm / 8.07 x 2.6 x 3.14 in
- Key Features and Benefits
- Supports multiple color spaces for high-accuracy color analysis
- Ergonomic handheld design with easy-to-use interface
- Automatic black and white calibration for precise readings
- LED light source ensures consistent illumination
- USB data transfer for quick and efficient documentation
- Rechargeable lithium-ion battery for extended use
- Stores up to 100 reference values and 20,000 samples
- Ideal for manufacturing, textiles, food processing, and quality control
- Includes
- 1 x Colorimeter PCE-CSM 2
- 1 x USB cable
- 1 x Battery
- 1 x AC power adapter
- 1 x Wrist band
- 1 x Standard calibration plate (white)
- 1 x PC software
- 1 x Instruction manual
- 1 x Soft carry case
