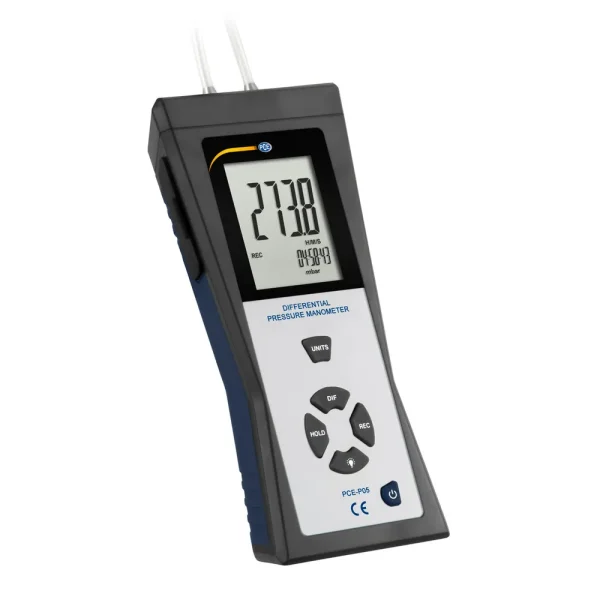

PCE Instruments Digital Manometer (PCE-P05) is a portable handheld device designed for precise measurement of differential pressure in pneumatic systems, compressors, pumps, valves, tanks, and HVAC installations. This digital manometer offers real-time data logging capabilities, allowing for thorough analysis and monitoring of pressure variations over time.
Equipped with a dual LCD, the meter displays current readings alongside min, max, and average values for easy comparison. Users can select from 11 different units of measurement, including mbar, bar, psi, and kPa, ensuring versatility across various applications.
- Specifications and Dimensions
- Measuring Range: -344 to +344 mbar / -5.000 to +5.000 psi
- Resolution: 0.1 mbar / 0.001 psi
- Accuracy: ±0.3% of measuring range
- Linearity: ±0.2%
- Response Time: Approximately 0.5 seconds
- Maximum Pressure: 1378 mbar
- Operating Temperature: 0 … 50°C / 32 … 122°F
- Storage Temperature: -10 … 60°C / 14 … 140°F
- Media Compatibility: Air and non-explosive gases
- Real-Time Data Logging Interval: Adjustable from 1 second to 24 hours
- Display: Dual LCD
- Dimensions: 210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
- Weight (without batteries): 650 g / 1.44 lbs
- Power Supply: 1 x 9V block battery or 9V DC / 500-mA AC adapter
- Key Features and Benefits
- Easy operation with intuitive controls
- Measures differential pressure with 11 selectable units, including mbar, bar, psi, and kPa
- Displays min, max, and average values for comprehensive analysis
- Hold function and backlight for convenient use in various environments
- Real-time data logging with adjustable intervals for detailed monitoring
- Includes software and USB cable for data transfer and analysis
- Battery level indicator and auto-off function to conserve power
- Zero point adjustment available at any time for accurate measurements
- Comes with an ISO calibration certificate for assured accuracy
- Includes
- 1 x Differential Pressure Meter PCE-P05
- 4 x 30 cm / 11.8 in silicone hoses
- 1 x Software including USB cable
- 1 x 9V block battery
- 1 x 9V DC power supply
- 1 x Plastic case
- 1 x User manual
