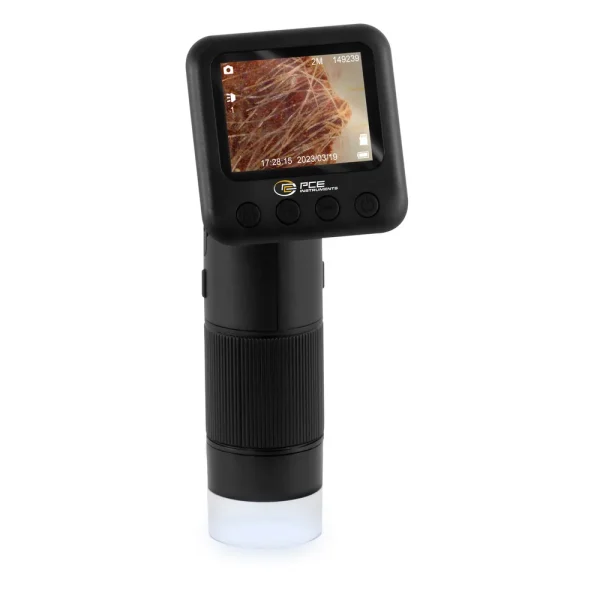

PCE Instruments Handheld Digital Microscope (PCE-DHM 5) is a portable digital microscope offering 400x to 800x magnification. Featuring a 2-inch IPS HD screen, this device provides sharp image and video recording functions, making it perfect for professional inspections, research, and educational purposes.
Designed for both indoor and outdoor applications, this compact digital microscope includes six dimmable LEDs for optimal lighting in various environments. With a built-in rechargeable lithium battery providing up to 3 hours of operation, it allows flexible, untethered use.
- Specifications and Dimensions
- Magnification: 400x – 800x
- Display: 2-inch IPS HD LCD
- Image Resolution: JPG 2 MP
- Video Resolution: 720p, 1080p (adjustable)
- Recording Modes: Single, continuous, timed (2, 3, 5, 10 sec)
- Lighting: 6 dimmable LEDs
- Storage: MicroSD (up to 32 GB, not included)
- Connectivity: USB-C
- Battery: 700 mAh Li-Ion, up to 3 hours of use
- Power Supply: 5V, 1A
- Weight: 131 g
- Dimensions: 165 x 60 x 60 mm
- Operating Temperature: 10°C – 50°C
- Protection Rating: IP20
- Key Features and Benefits
- Portable design for mobile and PC-independent operation
- Real-time viewing on a 2-inch HD screen
- High-resolution image and video capture with adjustable focus
- Time-controlled and continuous recording for extended observations
- Loop recording automatically overwrites older files when storage is full
- Multiple menu languages with date and time display
- Automatic power-off function for battery efficiency
- Ideal for inspecting circuit boards, plant roots, textiles, and more
- Includes
- 1 x Microscope PCE-DHM 5
- 1 x USB-C cable
- 1 x Storage bag
- 1 x Cleaning cloth
- 1 x User manual
- Note: Micro SD card not included
