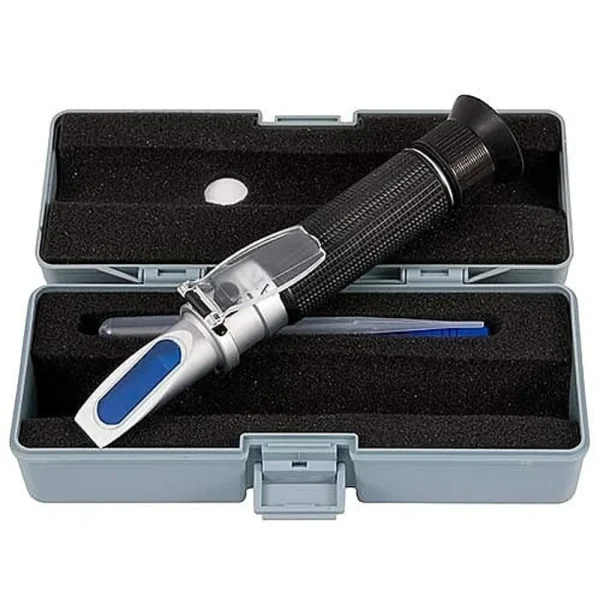

PCE Instruments Handheld Refractometer (PCE-SG) is a versatile tool designed for measuring the specific gravity of battery acid and determining the freezing point of ethylene and propylene glycol-based coolants. This device helps ensure proper dilution and maintenance of automotive and industrial fluids.
With a simple calibration process using distilled water, this refractometer is an essential instrument for automotive professionals, battery maintenance technicians, and industrial applications.
- Specifications and Dimensions
- Measuring Ranges:
- Ethylene Glycol: -50 … 0 °C
- Propylene Glycol: -50 … 0 °C
- Battery Acid: 1.15 … 1.30 sg
- Cleaning Solution: -40 … 0 °C
- Resolution:
- Ethylene Glycol: 5 °C
- Propylene Glycol: 5 °C
- Battery Acid: 0.01 sg
- Cleaning Solution: 5 °C
- Accuracy:
- Ethylene Glycol: ±5 °C
- Propylene Glycol: ±5 °C
- Battery Acid: ±0.01 sg
- Cleaning Solution: ±5 °C
- Calibration: Zero calibration with distilled water at 20 °C
- Dimensions: Approx. 157 x 29 mm diameter / 6.18 x 1.14″ diameter
- Weight: Approx. 230 g / 0.51 lb
- Key Features and Benefits
- Ideal for testing battery acid, coolants, antifreeze, and cleaning solutions
- Easy-to-read scale with a high-contrast semi-transparent blue background
- Ultra-smooth focusing eyepiece for precise measurements
- Requires only ambient lighting for clear and visible readings
- Handheld and portable design for convenient on-the-go testing
- Durable construction ensures reliable long-term use
- Quick and simple calibration process with distilled water
- Includes
- 1 x PCE-SG Handheld Refractometer
- 1 x Pipette
- 1 x Screwdriver
- 1 x User Manual
- 1 x Carrying Case
