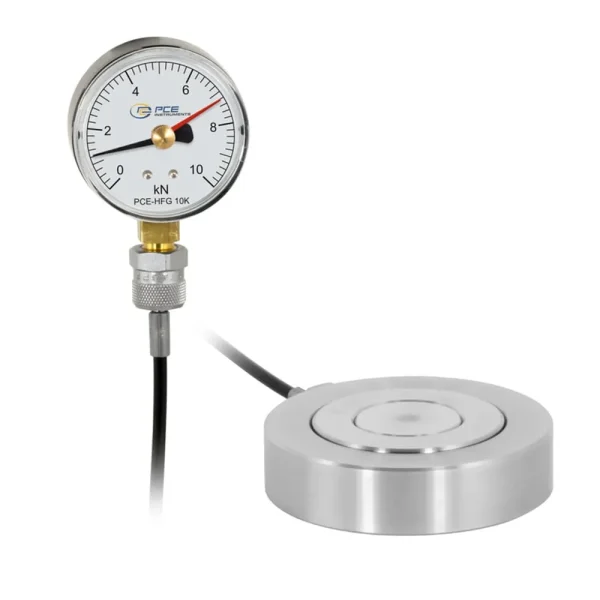

PCE Instruments Hydraulic Force Gauge (PCE-HFG 10K-E100) is designed to measure static compressive forces with high accuracy. Using hydraulic pressure, this force gauge provides precise readings in Newtons and features a drag pointer to capture peak force values. It is ideal for maintenance work, industrial machine adjustments, and force testing applications.
The 27 mm ring opening enables force measurements on shafts, guide rails, and bolts. Additionally, the device can be converted into a pressure force gauge using the included compression adapter, offering versatility in various testing environments.
- Specifications and Dimensions
- Measuring range: 0 … 10,000 N / 2,248 lbs
- Resolution: 200 N / 45 lbs
- Measuring accuracy: ±1.95% f. R.
- Hydraulic hose length: 100 cm
- Display diameter: Ø 55 mm
- Mounting holes: 2 x M6
- Operating temperature: 0 … 50°C / 32 … 122°F
- Key Features and Benefits
- Hydraulic force gauge with analog scale
- Measures static compressive forces with high precision
- Ring force transducer with a 27 mm opening
- Integrated drag pointer records peak force values
- Compact design for use in tight spaces
- Durable stainless steel construction
- Includes a pressure adapter for added versatility
- Easy installation with screw mounting options
- Includes
- 1 x Hydraulic Force Gauge PCE-HFG 10K-E100
- 1 x Instrument case
- 1 x Compression adapter
- 1 x Instruction manual
