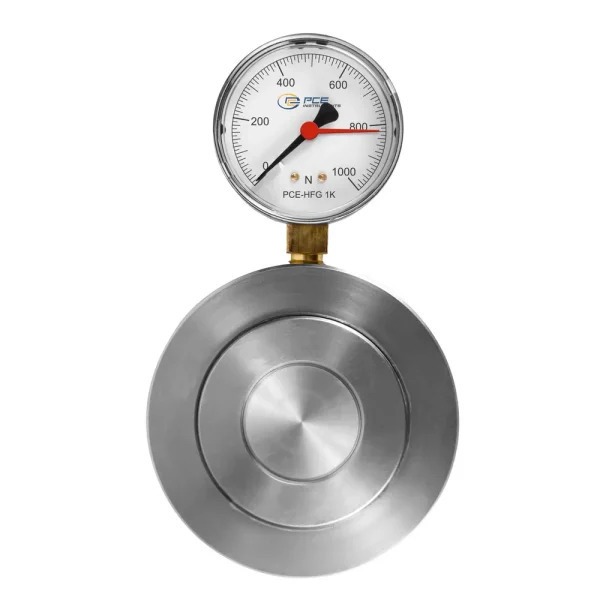

PCE Instruments Hydraulic Force Gauge with 1,000 N Capacity (PCE-HFG 1K) is a compact and durable solution for measuring static compressive forces in industrial applications. This hydraulic force gauge converts applied pressure into Newtons and displays the results on an analog scale. The integrated drag pointer ensures peak force values are captured for accurate readings, making it ideal for maintenance and quality control tasks.
Designed for small installation spaces, this hydraulic force gauge features a 27 mm ring opening, allowing direct measurements on guide rails, shafts, and bolts.
- Specifications and Dimensions
- Measuring range: 0 … 1,000 N / 225 lbs
- Resolution: 20 N / 4.5 lbs
- Measuring accuracy: ±2.5% of the measuring range
- Display diameter: Ø 55 mm
- Mounting holes: 2 x M6
- Operating temperature: 0 … 50°C / 32 … 122°F
- Key Features and Benefits
- Hydraulic force gauge with an analog display
- Measures static compressive forces accurately
- Ring force transducer with a 27 mm opening
- Integrated drag pointer records peak force values
- Durable stainless steel construction
- Compact design suitable for tight spaces
- Easy installation with screw mounting options
- Includes a pressure adapter for added versatility
- Includes
- 1 x Hydraulic Force Gauge PCE-HFG 1K
- 1 x Instrument case
- 1 x Compression adapter
- 1 x Instruction manual
