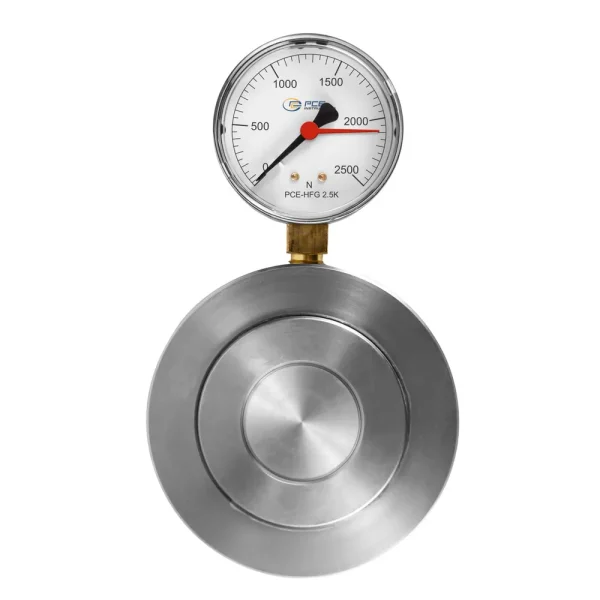

PCE Instruments Hydraulic Force Gauge with 2,500 N Capacity (PCE-HFG 2.5K) is designed for precise measurement of static compressive forces in industrial settings. Featuring a high-accuracy analog scale, this force gauge displays pressure in Newtons and includes an integrated drag pointer for peak force measurement.
Its compact design ensures ease of installation, making it ideal for maintenance and quality control applications. This hydraulic force gauge is equipped with a 27 mm ring opening, allowing measurements on guide rails, shafts, and bolts.
- Specifications and Dimensions
- Measuring range: 0 … 2,500 N / 562 lbs
- Resolution: 100 N / 22.5 lbs
- Measuring accuracy: ±1.95% f. R.
- Display diameter: Ø 55 mm
- Mounting holes: 2 x M6
- Operating temperature: 0 … 50°C / 32 … 122°F
- Key Features and Benefits
- Hydraulic force gauge with analog scale
- Measures static compressive forces up to 2,500 N
- Ring force transducer with a 27 mm opening
- Integrated drag pointer for peak force measurements
- Durable stainless steel construction for industrial use
- Compact design ideal for small installation spaces
- Includes a pressure adapter for added measurement versatility
- Perfect for maintenance and adjustment tasks on industrial machinery
- Includes
- 1 x Force Gauge PCE-HFG 2.5K
- 1 x Instrument case
- 1 x Compression adapter
- 1 x Instruction manual
