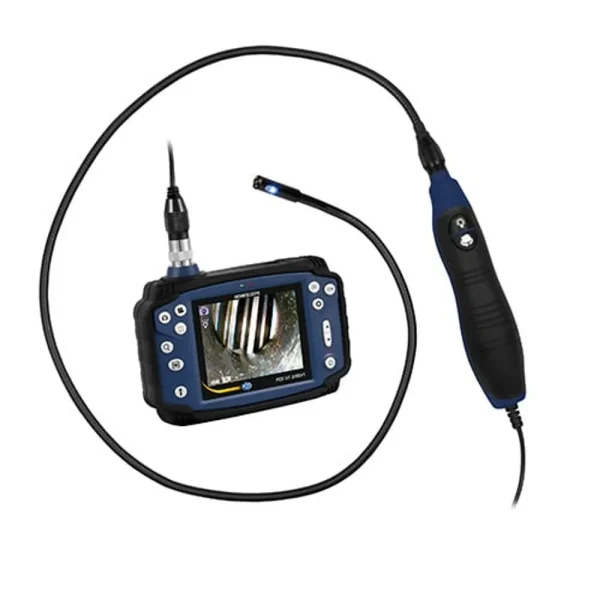

PCE Instruments Industrial Borescope (PCE-VE 200SV3) is a professional inspection tool designed for non-destructive diagnostics in mechanical, automotive, and HVAC applications. Equipped with a waterproof 9mm camera and a 3-meter push cable, this borescope allows for easy inspections without requiring disassembly of machinery or components.
The borescope features a 3.5-inch LCD display for real-time imaging, adjustable LED brightness for enhanced visibility, and a 4x digital zoom for capturing critical details. It supports image and video recording, with automatic storage on a micro SD card for easy documentation and review.
- Specifications and Dimensions
- Camera diameter: 9 mm / 0.4 in
- Camera cable length: 3 m / 9.9 ft
- Image sensor: 1/8″ CMOS chip
- Camera resolution: 640 x 480 pixels
- Video resolution: AVI (640 x 480)
- Picture resolution: JPEG (1600 x 1200)
- Field of view: 90°
- Focus depth: 15 – 100 mm / 0.6 – 3.9 in (front); 3 – 50 mm / 0.1 – 2 in (side)
- Display: 3.5″ LCD
- Zoom: Up to 4x digital magnification
- Lighting: 4 front LEDs, 2 side LEDs (adjustable brightness)
- Storage medium: Micro SD card
- Interfaces: Micro USB 2.0, TV out (PAL), Micro SD card slot
- Battery: Li-ion 2600mAh (rechargeable)
- Battery life: Long-lasting performance
- Operating temperature (main unit): -10 to 50°C / 14 to 122°F
- Operating temperature (probe): -10 to 50°C in air, 5 to 50°C in water
- Protection class: IP67 (waterproof probe, dust-resistant main unit)
- Key Features and Benefits
- 9mm waterproof camera head ideal for industrial inspections
- 3-meter semi-rigid push cable for easy maneuverability
- 3.5-inch LCD screen for real-time imaging
- 4x digital zoom and freeze function for capturing details
- 6 adjustable LED lights for enhanced visibility
- Stores images and videos directly onto a micro SD card
- Rechargeable battery for extended operation
- Perfect for mechanical, automotive, and HVAC applications
