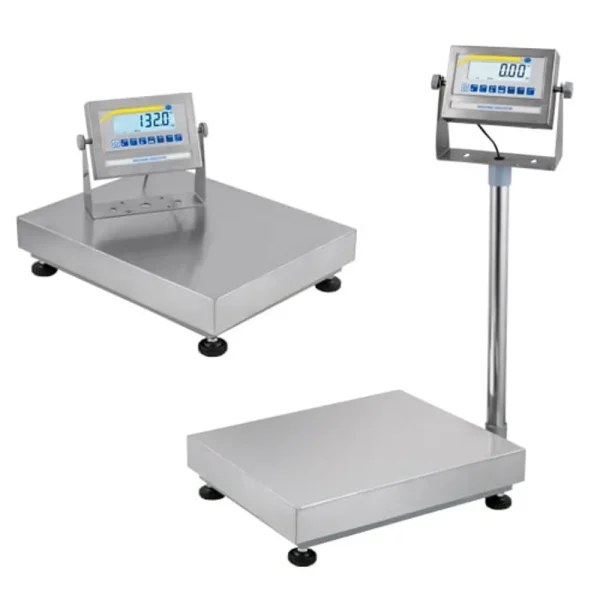

PCE Instruments Industrial Scale (PCE-EP 150P2) is a versatile and precise weighing solution designed for industrial applications. With a dual-range capacity of up to 150 kg, this scale ensures accuracy for a wide range of weighing tasks. It features a bidirectional RS232 interface for seamless data transfer, a counting function, and a detachable tripod mount for flexible use.
This industrial scale supports multiple weighing applications, including peak hold, summing, and gross/net weighing. The robust stainless steel display housing provides IP54 protection, making it suitable for harsh environments.
- Specifications and Dimensions
- Measuring Range: Max. 1 = 60 kg / Max. 2 = 150 kg
- Resolution: Up to 60 kg = 10 g; 60 kg – 150 kg = 20 g
- Measurement Uncertainty: ± 3 d
- Platform Size: 500 x 600 mm
- Tare Function: Over the entire weighing range
- Interface: RS232 Bidirectional / D-SUB 9 Female
- Optional Outputs: 4-20 mA analog, 4 potential-free outputs (LO/OK/HI/Stability)
- Display: LCD with 25 mm digit height
- Units: kg / lb (freely adjustable)
- Cable Length: Approx. 160 cm (with attached plug)
- Power Supply: 6V / 4.5Ah battery or 9V / 1.2A power adapter (included)
- Power Consumption: 70 mA
- Protection Class: IP54
- Operating Temperature: 0 … +40°C / 10 … 80% RH
- Weight: Approx. 25.5 kg
- Key Features and Benefits
- Dual-range weighing function for enhanced accuracy
- Bidirectional RS232 interface for easy data transfer
- Battery or mains operation for flexible usage
- Robust stainless steel display housing with IP54 protection
