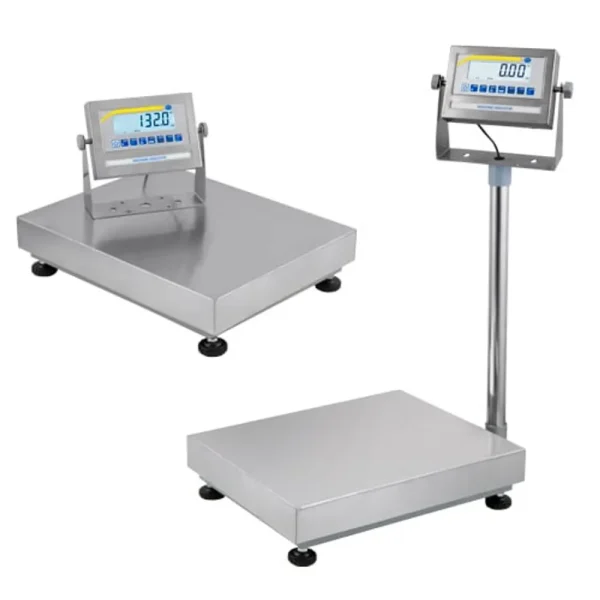

PCE Instruments Industrial Platform Scale (PCE-EP 30P1) is a versatile weighing solution designed for industrial environments. With a dual-range capacity of up to 30 kg, this scale delivers precise measurements for a variety of applications.
This platform scale supports essential weighing functions such as peak hold, summing, and gross/net weighing. The durable stainless steel display housing provides IP54 protection, making it suitable for industrial settings.
- Specifications and Dimensions
- Measuring Range: Max. 1 = 15 kg / Max. 2 = 30 kg
- Resolution: Up to 15 kg = 2 g; 15 kg – 30 kg = 5 g
- Measurement Uncertainty: ± 3 d
- Platform Size: 400 x 500 mm
- Tare Function: Over the entire weighing range
- Interface: RS232 Bidirectional / D-SUB 9 Female
- Optional Outputs: 4-20 mA analog, 4 potential-free outputs (LO/OK/HI/Stability)
- Display: LCD with 25 mm digit height
- Units: kg / lb (freely adjustable)
- Cable Length: Approx. 160 cm (with attached plug)
- Power Supply: 6V / 4.5Ah battery or 9V / 1.2A power adapter (included)
- Power Consumption: 70 mA
- Protection Class: IP54
- Operating Temperature: 0 … +40°C / 10 … 80% RH
- Weight: Approx. 14 kg
- Key Features and Benefits
- Durable stainless steel display housing with IP54 protection
- Multiple weighing modes including peak hold and summing
- Animal weighing and container weighing functions
- Automatic power-off feature for battery conservation
