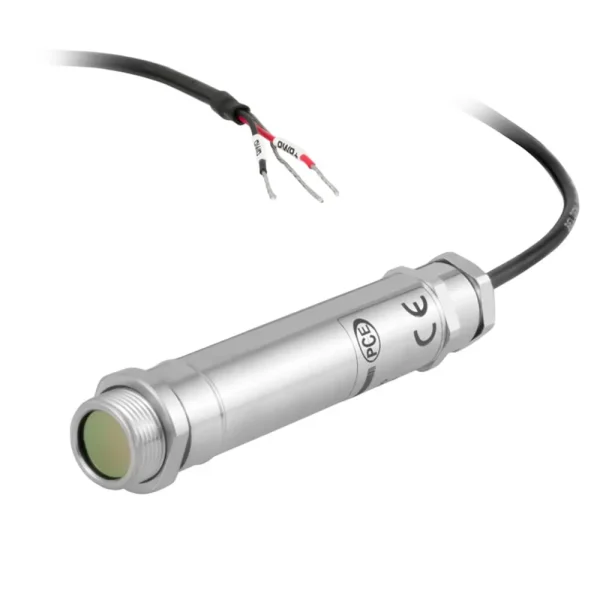

PCE Instruments Pyrometer (PCE-IR 50) is a reliable temperature monitoring device designed for fixed installation. It enables non-contact surface temperature measurements ranging from 0 to 500°C (32 to 932°F), making it ideal for industrial applications where precise thermal monitoring is required.
With a fast response time of just 240 ms and an optical resolution of 15:1, the PCE-IR 50 accurately detects temperature changes from a safe distance, improving efficiency in automated systems.
- Specifications and Dimensions
- Measuring Range: 0 … +500°C / 32 … 932°F
- Accuracy: ± 1°C or 1% of measured value (whichever is higher)
- Repeatability: ± 0.5°C or 0.5% of measured value (whichever is higher)
- Optical Resolution: 15:1
- Output Signal: 4 … 20 mA
- Spectral Sensitivity: 8 … 14 µm
- Emissivity: Fixed at 0.95
- Power Supply: 24 VDC
- Load: 900 Ohm
- Protection Class: IP65
- Material: Stainless steel
- Operating Temperature: 0 … +70°C
- Relative Humidity: 10 … 95%
- Response Time (T90): 240 ms
- Accessories: Mounting plate included
- Cable Length: 1 m
- Dimensions: Ø18 x 103 mm
- Key Features and Benefits
- Accurate readings up to 500°C for machine and process monitoring
- Fast response time of 240 ms for quick temperature detection
- 4-20mA output allows seamless integration into control systems
- Durable stainless steel housing with IP65 protection
- Long 1-meter connection cable for flexible installation
- Includes
- 1 x Infrared Pyrometer PCE-IR 50
- 1 x Mounting Bracket
- 1 x User Manual
