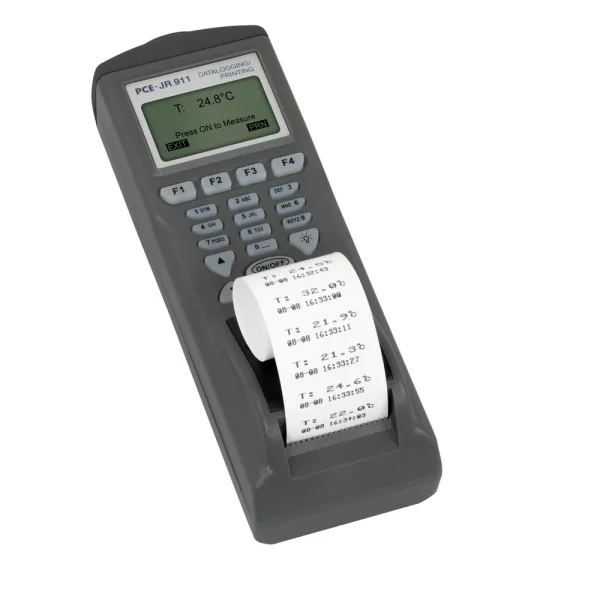

PCE Instruments Infrared Thermometer (PCE-JR 911) is a versatile device designed to measure surface temperature without contact while offering advanced data logging and instant printing capabilities. It features an integrated thermal printer, an RS-232 interface for data transfer, and the ability to store up to 1200 readings.
With adjustable emissivity from 0.3 to 1.0, this infrared thermometer ensures accurate readings on different surfaces. The built-in data logger allows for scheduled measurements over extended periods, making it ideal for industrial applications, food safety, and research environments.
- Specifications and Dimensions
- Temperature Range: -40 to 500°C / -40 to 932°F
- Resolution: 0.1°C / 0.18°F
- Accuracy: ±2% of reading or ±2°C / 3.6°F (whichever is greater)
- Emissivity: Adjustable from 0.3 to 1.0
- Optical Resolution: 8:1
- Response Time: 0.2 seconds
- Memory: Stores up to 1200 readings
- Interface: RS-232 for data transfer (optional RS-232 to USB adapter available)
- Measurement Interval: Adjustable
- Printer: Integrated thermal printer, 38 mm (1.5 in) width
- Display: LCD with backlight
- Power Supply: 4 AA batteries or optional mains adapter
- Dimensions: 208 x 70 x 53 mm / 8.2 x 2.8 x 2 in
- Weight: 260 g / < 1 lb
- Key Features and Benefits
- Non-contact temperature measurement with high accuracy
- Built-in thermal printer for immediate data printing
- Data logging function stores up to 1200 readings for analysis
- RS-232 interface for transferring data to a PC
- Adjustable emissivity for precise measurement on different materials
- Infrared pointer ensures accurate targeting of the measured surface
- Supports scheduled measurement intervals for long-term monitoring
- Includes software for detailed analysis and reporting
