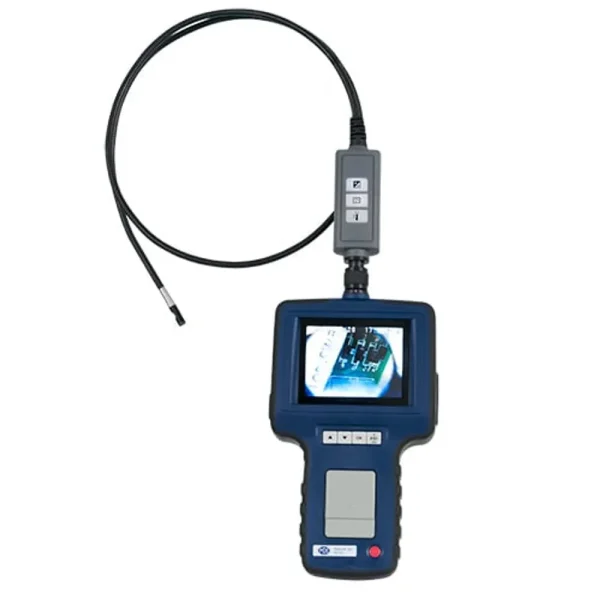

PCE Instruments Inspection Camera (PCE-VE 320HR) is designed for non-destructive inspection of engines, machines, and hard-to-reach areas. This device features a waterproof camera head with six adjustable LEDs, enhancing visibility in confined spaces.
The device allows images and videos to be stored on an included 8 GB SD memory card, with expansion options up to 32 GB. Ideal for mechanical engineering, HVAC maintenance, and industrial inspections, this camera ensures accurate diagnostics and documentation.
- Specifications and Dimensions
- Camera head diameter: 5.5 mm / 0.22 in
- Cable length: 1 m / 3.28 ft
- Depth of field: 1.5 … 10 cm / 0.59 … 3.94 in
- Field of view: 67°
- Bending radius: 90 mm / 3.54 in
- Illumination: 6 LEDs (4 front, 2 side)
- Boost function: Enhances image quality in dark conditions
- Image sensor: CMOS
- Display: 3.5 in TFT LCD screen
- Interface: Mini USB 1.1 / AV out
- Storage: 8 GB SD memory card (expandable up to 32 GB)
- Picture format: JPEG (640 x 480 px)
- Video format: ASF (320 x 240 px), NTSC / PAL output
- Operating temperature: -10 … 60°C / 14 … 140°F
- Battery: Rechargeable 3.7 V lithium-ion battery
- Protection: IP68 waterproof camera head
- Dimensions (handheld device): 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
- Weight (incl. carrying case): 450 g / 1 lb
- Key Features and Benefits
- High-resolution inspection camera for industrial diagnostics
- LED lighting ensures visibility in dark or confined spaces
- Boost function enhances image quality in low-light conditions
- Rotatable image display for improved viewing angles
- Storage of images and videos on an SD card for documentation
- Waterproof camera head (IP68) allows underwater inspections
- Portable design with a rechargeable battery for extended use
- Includes carrying case and additional accessories for convenience
- Includes
- 1 x Inspection Camera PCE-VE 320HR
- 1 x 8 GB SD memory card
- 1 x USB cable
- 1 x Carrying case
- 1 x Mains power adapter
- 1 x User manual
