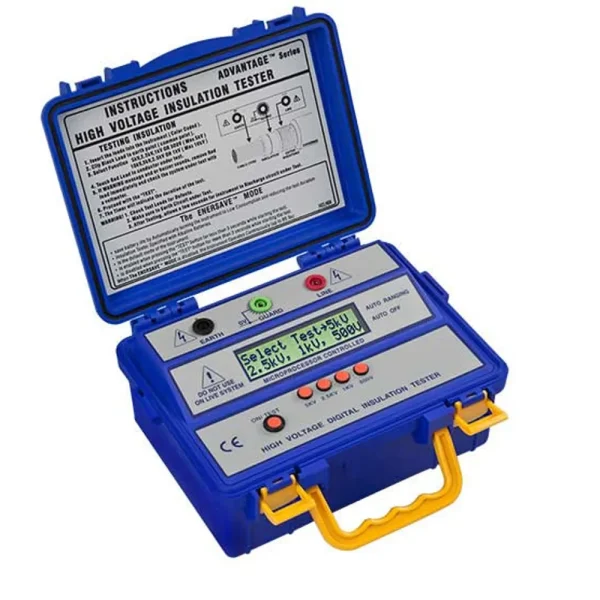

PCE Instruments Insulation Tester – 10kV (PCE-IT414) is a professional high-voltage resistance measurement device designed for industrial and technical service applications. With test voltages up to 10,000V and resistance measurements up to 600 GΩ, this insulation tester ensures reliable testing under demanding conditions.
The insulation tester features a 6-digit LCD for precise data display, built-in safety alarms, and factory calibration for maximum accuracy. Its microprocessor-controlled design enhances performance while preventing errors caused by current leakage.
- Specifications and Dimensions
- DC Test Voltages: 1,000V, 2,500V, 5,000V, 10,000V
- Insulation Resistance Ranges:
- 60 GΩ @ 1,000V
- 150 GΩ @ 2,500V
- 300 GΩ @ 5,000V
- 600 GΩ @ 10,000V
- Accuracy: ±3%
- Potential Output: Maximum of 1 watt
- Insulation Resistance (Enclosure & Conductors): 2000 MΩ / 2000V
- Static Voltage Between Enclosure & Circuit: 700V AC (max 1 minute)
- AC Warning Circuit: Activates for voltage > 450V AC
- Display: 6-digit LCD
- Power Supply: 8 x 1.5V AAA batteries
- Dimensions: 250 x 110 x 190 mm / 9.8 x 4.3 x 7.5 in
- Weight: 1.5 kg / 3.3 lbs
- Safety Standards:
- IEC-1010-1, CAT III
- VDE 0413 part 1
- EN 61010-1
- Electromagnetic Compatibility:
- Key Features and Benefits
- High-voltage insulation resistance testing up to 600 GΩ
- Four selectable test voltages up to 10,000V
- 6-digit LCD display for enhanced readability
- Microprocessor-controlled for error-free measurements
- Built-in safety alarms for hazardous voltage detection
- Includes color-coded silicon test leads and protective cover
