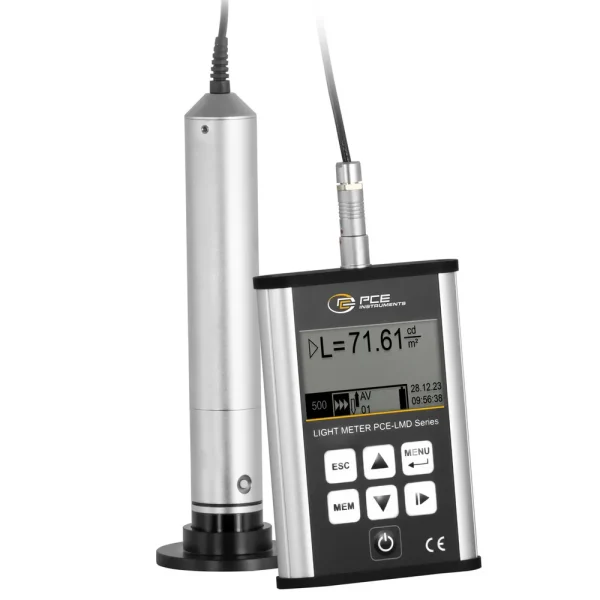

PCE Instruments Luxmeter (PCE-LMD 100) is a high-precision device designed for measuring the luminance of self-illuminating surfaces such as monitors, LED panels, and medical screens. Equipped with an external sensor featuring a multifunction button, this luxmeter ensures accurate readings with minimal interference. With a broad measuring range of 0 to 50,000 cd/m², it is ideal for quality control and compliance testing.
The PCE Instruments Luxmeter features an integrated data memory that allows easy recording and retrieval of measured values. The device stores data on an 8GB micro SD card.
- Specifications and Dimensions
- Measuring Range: 0 to 50,000 cd/m²
- Resolution: 0.01 cd/m² (0 to 500 cd/m²), 1 cd/m² (500 to 50,000 cd/m²)
- Accuracy: ±2.5% at +10 to +40°C, ±3% at -10 to +50°C
- Measurement Rate: 1 Hz
- Measuring Angle: 1°
- Storage Interval: 1 to 60 seconds
- Data Storage: 8GB micro SD card
- Interface: Micro-USB
- Power Supply: 5V DC / 2.1A rechargeable battery
- Operating Conditions: -10 to 50°C, 90% RH
- Dimensions: 118 x 74 x 21 mm (sensor: Ø 25 x 160 mm)
- Weight: 172 g (device), 1.4 kg (with accessories)
- Key Features and Benefits
- Wide measuring range up to 50,000 cd/m² for high-precision luminance measurement
- External sensor with multifunction button for quick and accurate readings
- Memory function stores up to 8GB of measurement data for easy analysis
- Complies with DIN 5032-7 and CIE TC-2.2 standards for accurate results
- Rechargeable battery for extended use without frequent replacements
- Micro-USB interface for charging and data transfer
- Designed for use in medical imaging, LED displays, and quality control applications
