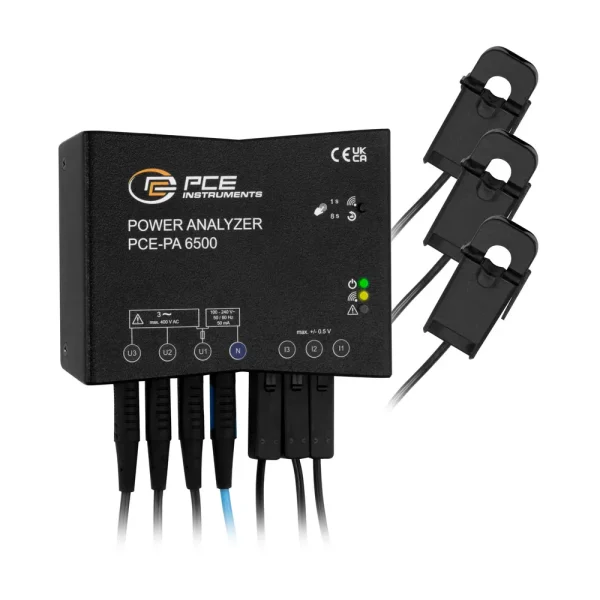

PCE Instruments Monitoring Meter, 10 mm Maximum Cable Diameter (PCE-PA 6500 R11) is a precision tool designed to measure and monitor electrical power parameters in real time. This device supports active, apparent, and reactive power calculations, making it ideal for energy monitoring in industrial and commercial environments.
Using Rogowski coils and folding current transformers, the power meter provides accurate readings for voltage, current, and frequency. It offers seamless data transmission and remote access through a web browser or mobile app. This allows for effortless integration into existing monitoring systems.
- Specifications and Dimensions
- AC Voltage Measurement Range: 40 … 400 V
- Resolution: 0.01 V
- AC Current Measurement Range: 0 … 80 A
- Active Power Measurement Range: 0 W … 32 kW
- Reactive Power Measurement Range: 0 VAR … 32 kVAR
- Apparent Power Measurement Range: 0 VA … 32 kVA
- Power Factor Range: 0 … 1
- Data Storage Capacity: 32 GB
- Measuring Rate: 26000 Hz
- Maximum Cable Diameter: 10 mm
- Operating Temperature: -5 … 40 °C
- Power Supply: 100 … 240 V 50/60 Hz (+/- 10%)
- Device Dimensions (L x W x H): 123 x 96 x 36 mm
- Weight: 202 g
- Key Features and Benefits
- Measures active, apparent, and reactive power
- Power factor and energy consumption analysis
- Wi-Fi connectivity for remote monitoring
- Built-in 32 GB memory for offline data storage
- Supports CSV file export for further data analysis
- Works with Rogowski coils for flexible measurement
- App control available for Android devices
- Magnetic measuring tips for secure installation
- No additional power source required
- Includes
- 1 x PCE-PA 6500 R11 Power Indicator
- 4 x Test Leads (Blue, Brown, Black, Grey) 2 m
- 3 x Rogowski Coils
- 3 x Magnetic Measuring Adaptors 6.6 mm
- 1 x Blue Crocodile Clip
- 1 x User Manual
- 1 x Service Bag
