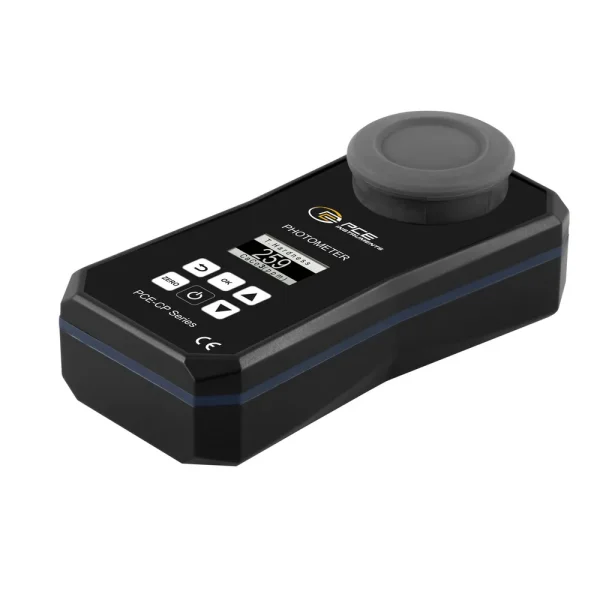

PCE Instruments Multi-Parameter Photometer with Bluetooth Interface (PCE-CP 20) is a professional-grade device designed for liquid analysis. It accurately measures multiple water quality parameters, including pH, chlorine, cyanuric acid, and total hardness, making it ideal for laboratories, industrial applications, and environmental monitoring.
With Bluetooth connectivity, this photometer enables seamless data transfer to a mobile app or PC software, allowing real-time monitoring and cloud synchronization. Its automatic data storage, intuitive multi-language interface, and high-precision LED-based photometry ensure ease of use and reliability.
- Specifications and Dimensions
- Measurement Parameters: pH, alkalinity, chlorine, cyanuric acid, total hardness, calcium hardness
- Light Source: 503 nm / 570 nm / 620 nm LED
- Light Detector: Photodiode
- Calibration: Zero-point calibration
- Data Storage: 256 values
- Interface: Bluetooth connection with app and PC software
- Automatic Shutdown: After 300 seconds of inactivity
- Power Supply: 4 x 1.5V AA batteries
- Operating Conditions: 5 – 45°C, 20 – 90% RH non-condensing
- Storage Conditions: 5 – 45°C, 20 – 90% RH non-condensing
- Dimensions: 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
- Weight: 230 g / < 1 lb
- Measurement Ranges and Accuracy
- pH:
- Measuring Range: 6.50 – 8.40 pH
- Accuracy: 0.11 pH
- Resolution: 0.01 pH
- Chlorine:
- Measuring Range: 0.00 – 8.00 mg/L
- Accuracy: 0.10 – 1.00 mg/L
- Resolution: 0.01 mg/L
- Cyanuric Acid:
- Measuring Range: 0 – 160 mg/L
- Accuracy: 1 – 19 mg/L
- Resolution: 1 mg/L
- Alkalinity:
- Measuring Range: 0 – 200 mg/L
- Accuracy: 3 – 18 mg/L
- Resolution: 1 mg/L
- Total Hardness:
- Measuring Range: 0 – 500 mg/L
- Accuracy: 3 – 58 mg/L
- Resolution: 1 mg/L
- Calcium Hardness:
- Measuring Range: 0 – 500 mg/L
- Accuracy: 8 – 45 mg/L
- Resolution: 1 mg/L
- Key Features and Benefits
- Measures up to seven essential water quality parameters
- Bluetooth connectivity for wireless data transfer
- Automatic measurement storage for easy tracking
- Supports cloud-based synchronization for remote access
