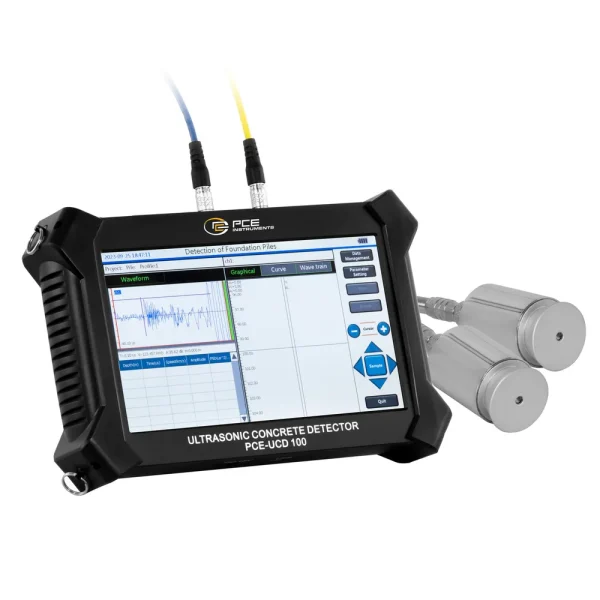

PCE Instruments NDT Test Instrument (PCE-UCD 100) is designed for precise analysis of concrete structures. It measures concrete strength, detects voids and cracks, and allows for high-resolution crack width measurement using an integrated camera.
The robust carrying case ensures durability, while the 8 GB internal storage allows for convenient data recording and transfer. Ideal for professionals working with concrete piles, beams, and other structural components, this device enhances efficiency in non-destructive testing applications.
- Specifications and Dimensions
- Acoustic Signal Range: -1677700 µs … +1677700 µs
- Resolution: 0.05 µs
- Measurement Functions: Concrete strength analysis, void and crack detection
- Measurement Interval: 0.05 … 409.6 µs
- Display Type: 10.1-inch TFT color touchscreen
- Data Interface: USB
- Battery Capacity: 8100 mAh
- Battery Voltage: 11.1 V
- Battery Type: Lithium-ion
- Bandwidth: 1 … 500 kHz
- Test Voltage Options: 125 V, 250 V, 500 V, 1000 V
- Gain Range: 146 dB
- Menu Language: English, Chinese
- Protection Class: IP20
- Power Supply: Mains or Battery
- Weight: 2160 g (Device Only), 8700 g (With Accessories and Packaging)
- Dimensions: 300 x 200 x 58 mm
- Sensor Cable Length: Approximately 10 m
- Operating Conditions: 0 … 50 °C, 10 … 85% RH
- Storage Conditions: 0 … 50 °C, 10 … 85% RH
- Key Features and Benefits
- Measures concrete strength and detects voids, cracks, and depth variations
- Includes a high-resolution camera for crack width measurement
- 10.1-inch touchscreen for real-time analysis and easy operation
- Wide frequency bandwidth from 1 to 500 kHz for precise measurements
- Large internal storage (8 GB) for recording and exporting test data
- Durable carrying case for safe transportation and field use
- USB connectivity for seamless data transfer
- Operates with mains power or rechargeable lithium-ion battery
- Includes
- 1 x PCE-UCD 100 NDT Test Instrument
- 2 x Ultrasonic Sensors
- 1 x Camera
- 1 x Ultrasonic Contact Gel
- 2 x Signal Cables
- 1 x Camera Cable
- 1 x Carrying Strap
- 1 x USB Stick with Software
- 1 x Measurement Template
- 1 x Mains Adapter with IEC Cable
- 1 x Plastic Carrying Case
- 1 x User Manual
