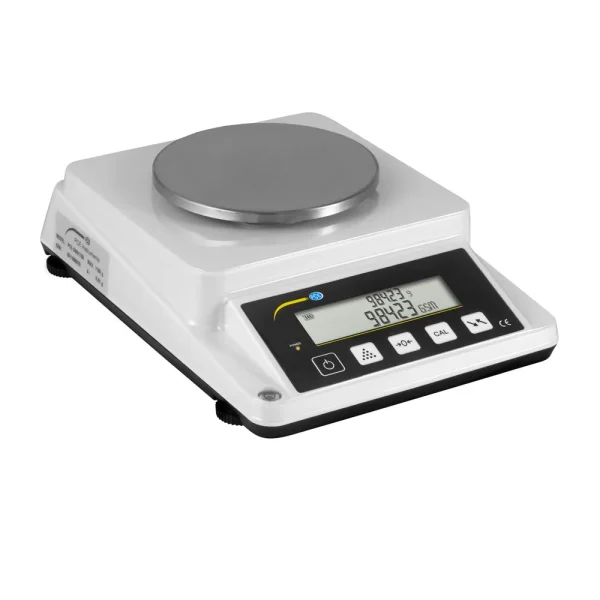

PCE Instruments Paper Scale (PCE-DMS 1100) is a precision instrument designed for measuring the basis weight of paper, fabric, and cardboard. With a weighing range of up to 1100 g and a resolution of 0.01 g, this device ensures highly accurate readings for industrial and laboratory use.
Equipped with an RS-232 interface, this digital paper scale allows seamless data transfer to a PC. Its backlit display provides clear visibility, while the piece counting function enhances usability. The device supports both stationary and mobile operation, thanks to its dual power supply options—battery and AC adapter.
- Specifications and Dimensions
- Measuring Range: 0 … 1100 g / 0 … 110,000 g/m²
- Resolution: 0.01 g / 1 g/m²
- Repeatability: ± 0.02 g
- Linearity: ± 0.03 g
- Stabilization Period: < 3 seconds
- Operating Conditions: 17.5 … 22.5°C (63.5 … 72.5°F), 85% RH non-condensing
- Interface: Serial RS-232
- Power Supply (Battery): 3 x 1.5V AA
- Power Supply (AC Adapter): Primary: 100 … 240 V, 50/60 Hz / Secondary: 6V, 500 mA
- Support Surface Dimensions: 270 x 200 x 80 mm / 10.6 x 7.9 x 3.1 in
- Weight: 2 kg / 4.4 lbs
- Key Features and Benefits
- High-precision measurements for paper, fabric, and cardboard
- Backlit display for easy reading in different lighting conditions
- RS-232 interface for seamless data transfer to a PC
- Piece counting function for increased efficiency
- Operates on batteries or AC power for flexible usage
- Compact and lightweight design for portability
- Ideal for laboratories, printing industries, and quality control
- Includes
- 1 x Paper Scale (PCE-DMS 1100)
- 1 x Test Weight
- 1 x Power Supply
- 1 x User Manual
