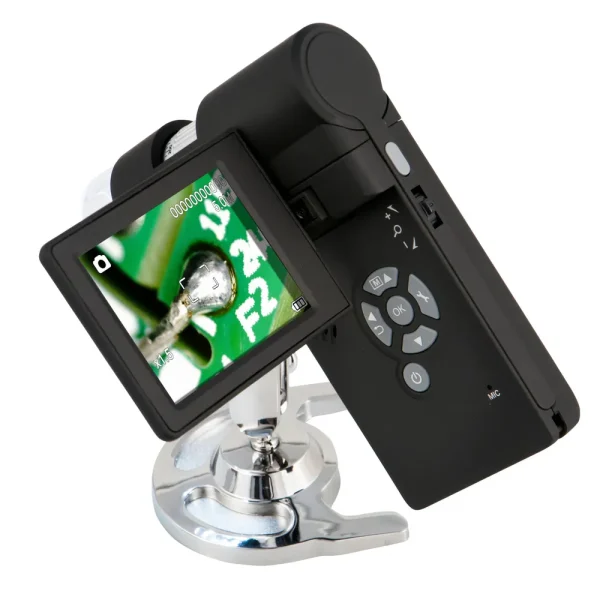

PCE Instruments Portable Digital Microscope (PCE-DHM 10) is a versatile device for capturing, magnifying, and analyzing the smallest details with up to 500x zoom. Equipped with a retractable 3-inch TFT display, it allows for PC-independent operation, making it ideal for laboratory, educational, and industrial applications.
The digital microscope features an integrated 5-megapixel camera (interpolated to 12 MP) that captures high-resolution images and videos, stored directly on a MicroSD card. Its USB 2.0 connectivity allows for easy transfer to a PC or laptop.
- Specifications and Dimensions
- Magnification: 20x, 200x, and 500x (based on 5 MP resolution)
- Display: 3-inch TFT color screen
- Camera Sensor: 5 MP CMOS (12 MP interpolated)
- Image Resolution: 12 MP, 9 MP, 5 MP, 3 MP, 1.3 MP, VGA
- Shutter Speed: 1 sec to 1/1000 sec
- Focusing Range: 10 mm – 30 mm
- Storage: MicroSD card (up to 32 GB)
- Power Supply: 3.7V Li-Ion rechargeable battery
- Lighting: 8 white LEDs
- Connectivity: USB 2.0
- Weight: 171 g
- Dimensions: 130 x 112 x 28 mm
- Key Features and Benefits
- Portable design for mobile and PC-independent use
- High-resolution image and video capture with MicroSD storage
- Built-in digital zoom and playback function on display
- Adjustable LED lighting for optimal clarity
- PC-compatible with Windows and Mac operating systems
- Software for measuring distances and surfaces in enlarged view
- Dual-axis lens with 27x and 100x magnification
- Ideal for research, inspection, and industrial quality control
