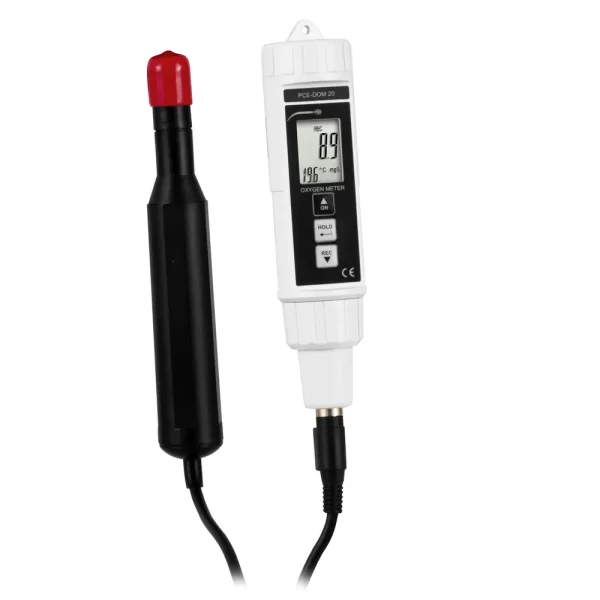

PCE Instruments Dissolved Oxygen Meter (PCE-DOM 20) is a precision device for measuring oxygen levels in water and air. Designed for mobility, it features automatic temperature compensation and an external probe with a 4-meter cable for flexible operation.
This oxygen measurement device is ideal for laboratory testing, environmental monitoring, and fish farming. The exchangeable sensor and included electrolyte solution ensure long-term usability, while the LCD display provides clear, real-time readings.
- Specifications and Dimensions
- Oxygen measurement range (liquids): 0 … 20 mg/L
- Oxygen measurement range (air): 0 … 100%
- Resolution: 0.1 mg/L (liquids), 0.1% (air)
- Accuracy: ±0.4 mg/L (liquids), ±0.7% (air)
- Temperature range: 0 … 50°C (32 … 122°F)
- Temperature resolution: 0.1°C (0.18°F)
- Temperature compensation: Automatic
- Power supply: 4 x 1.5V AAA batteries
- Power consumption: Approx. 6.2 mA
- Display: LCD, 29 x 28 mm
- Automatic shutdown: After 15 minutes
- Operating conditions: 0 … 50°C, < 80% RH
- External probe cable length: 4 m (13.1 ft)
- Dimensions: 180 x 40 x 40 mm (handheld device)
- Weight: Approx. 390 g
- Key Features and Benefits
- Measures dissolved oxygen in water and air with high precision
- Automatic temperature compensation for accurate readings
- External probe with 4-meter cable for extended reach
- LCD display with clear measurement readings
- Includes electrolyte and membranes for immediate operation
- Ideal for environmental monitoring and fish farming
- Portable design for field or laboratory use
- Includes
- 1 x Dissolved Oxygen Meter (PCE-DOM 20)
- 1 x External oxygen probe (OXPB-11)
- 1 x Electrolyte (OXEL-03)
- 2 x Membranes (OXHD-04)
- 1 x Transport bag
- 4 x 1.5V AAA batteries
- 1 x Instruction manual
