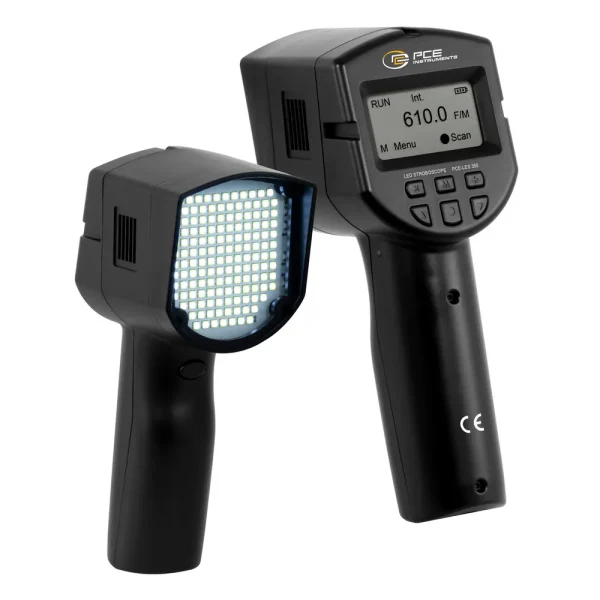

PCE Instruments Portable LED Stroboscope (PCE-LES 350) is a powerful tool designed for precise motion analysis and high-speed inspection. With a frequency range of 50 to 12,000 FPM, this stroboscope provides exceptional accuracy for monitoring rotating machinery, production lines, and industrial processes.
The PCE Instruments Portable LED Stroboscope features 144 high-intensity LEDs, delivering an illuminance of 6270 lux at 1200 FPM from a distance of 20 cm. Its user-friendly interface allows for quick frequency adjustments, including doubling and division of FPM for easy synchronization.
- Specifications and Dimensions
- Flash Frequency: 50 to 12,000 FPM
- Resolution: 0.1 FPM
- Accuracy: ±0.01% of measured value
- Flash Units: FPM, Hz, m/min
- Light Source: 144 high-power LEDs
- Illuminance: 6270 lux at 1200 FPM / 20 cm
- Pulse Width: 8 to 50 µs (±1µs)
- Display: Graphic LCD
- Battery Life: Up to 4 hours
- Power Supply: 100 to 240V AC, 50/60Hz
- Device Weight: 435 g / 0.96 lbs
- Device Dimensions: 203 x 80 x 85 mm
- Operating Temperature: 0 to 50°C
- Key Features and Benefits
- Precision stroboscope for motion analysis and speed measurement
- 144 high-power LEDs for optimal illumination
- Adjustable flash frequency for detailed inspection
- Doubling and division of FPM at the press of a button
- Integrated lithium-ion battery for portable use
- Automatic power-off function for extended battery life
- Ergonomic design for quick, one-hand operation
- Ideal for industrial, research, and production applications
