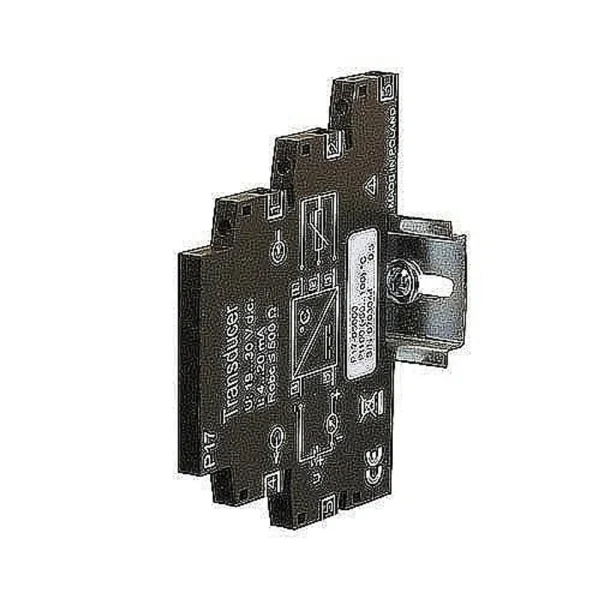

PCE Instruments Signal Converter (PCE-P17PT-1) is designed to transform PT100 resistance thermometer outputs into standardized 4-20 mA signals, facilitating straightforward processing in various industrial applications. This compact converter, with a slim width of just 6.2 mm, supports DIN rail mounting.
Operating efficiently via an electricity loop, the converter eliminates the need for an external power supply, simplifying installation. It functions effectively within a temperature range of -20 °C to +65 °C and supports conductor cross-sections from 0.2 mm² to 2.5 mm² (AWG24-12), accommodating diverse wiring requirements.
- Specifications and Dimensions
- Input Signal: PT100 resistance thermometer
- Output Signal: 4-20 mA
- Load (RLOAD): Max. 500 Ω
- Conductor Cross-Section: 0.2 mm² … 2.5 mm² (AWG24-12)
- Operating Temperature: +10 … +40 °C
- Mounting Width: 6.2 mm
- Power Supply: 19 … 30 V DC
- Weight: 80 g
- Ambient Temperature: -20 °C … +65 °C
- Ambient Humidity: <95% non-condensing
- Dimensions: 77.5 x 6.2 x 100 mm
- Key Features and Benefits
- Converts PT100 sensor outputs to standardized 4-20 mA signals
- Compact design with low installation width for space-saving DIN rail mounting
- Operates via electricity loop, eliminating the need for an external power supply
- Wide operating temperature range suitable for various industrial environments
- Simple design ensures easy installation and integration
- Includes
- 1 x PT-100-Transducer PCE-P17PT-1
- 1 x User Manual
