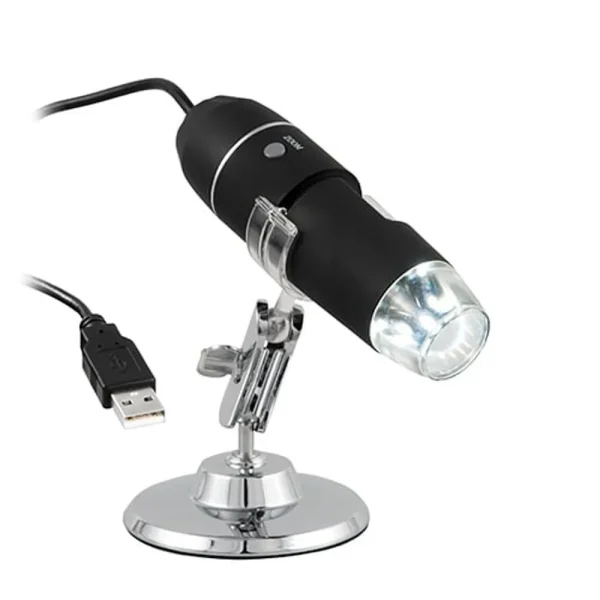

PCE Instruments USB Microscope (PCE-MM 800) is a high-resolution digital magnification tool designed for professional and industrial applications. Featuring up to 1600x magnification, this USB-connected microscope allows users to examine fine details on a computer screen.
Equipped with 8 built-in bright LED lights, the PCE-MM 800 USB Microscope provides uniform illumination for clear imaging. The adjustable brightness feature prevents overexposure, ensuring detailed observation of test objects.
- Specifications and Dimensions
- Magnification: 200x / 500x / 800x / 1000x / 1600x
- Resolution (Image & Video): Default: 640 x 480, Maximum: 1600 x 1200 pixels
- Sensor: CMOS
- Lighting: 8 built-in LED lights with manual brightness adjustment
- Frame Rate: 30 fps at 600 lux brightness
- PC Interface: USB
- Power Supply: 5V DC via USB port
- Digital Zoom: 5x
- Focusing Range: 10 mm / 0.39 in (wide-angle)
- Language: English
- Dimensions: 112 x 33 mm / 4.4 x 1.3 in
- Weight: 250 g
- Key Features and Benefits
- USB-connected digital microscope with up to 1600x magnification
- High-resolution image and video capture for precise inspection
- 8 adjustable LED lights for optimal illumination
- Real-time display on a computer screen for reduced eye strain
- Includes
- 1 x Microscope PCE-MM 800
- 1 x Microscope table stand
- 1 x Software
- 1 x Calibration template
- 1 x Instruction manual
