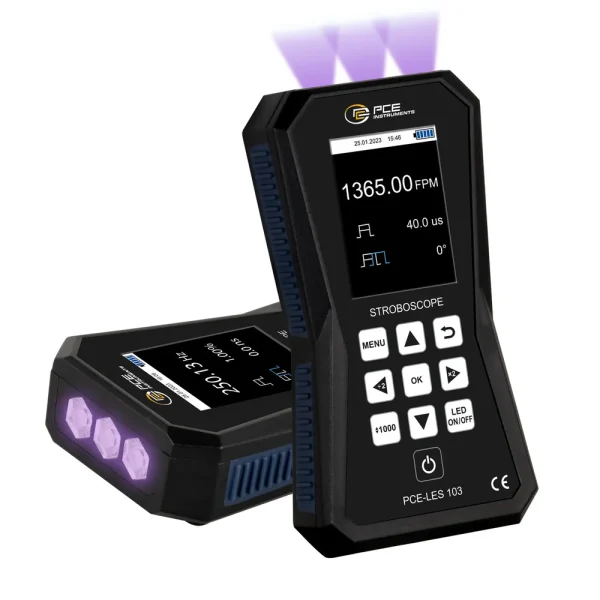

PCE Instruments UV Stroboscope (PCE-LES 103UV-365) is a powerful tool designed for high-precision motion analysis in industrial applications. Featuring three UVA high-power LEDs, this stroboscope delivers a light intensity of 202 μW/cm² at 30 cm, making it ideal for detecting rotational speed and inspecting moving components.
The PCE Instruments UV Stroboscope offers precise flash frequency adjustment in FPM and Hz. With phase shift functionality and digital pulse width modulation, it enables accurate visual monitoring of rotating equipment.
- Specifications and Dimensions
- Flash Frequency: Adjustable in FPM and Hz
- Measurement Range: 60 to 300,000 FPM
- Phase Shift: -360° to +360°
- Pulse Width: 0.01% to 1% of pulse duration
- Display Type: 2.8-inch TFT color display
- Light Intensity: 202 μW/cm² at 30 cm
- Operating Time: Up to 4.5 hours at 100 Hz
- Power Supply: 5V DC, 2A rechargeable battery
- Device Protection: IP52
- Device Weight: 284 g / 0.6 lbs
- Device Dimensions: 165 x 90 x 35 mm
- Operating Temperature: -20 to 60°C
- Key Features and Benefits
- High-power UVA LEDs for precise motion analysis
- Phase shift capability for enhanced inspection accuracy
- Digital pulse width modulation for consistent light intensity
- Lightweight and portable design
- Rechargeable lithium-ion battery for extended operation
- Auto shut-off feature to conserve battery life
- Easy-to-use menu with multiple language options
- Ideal for industrial maintenance, printing, and textile applications
