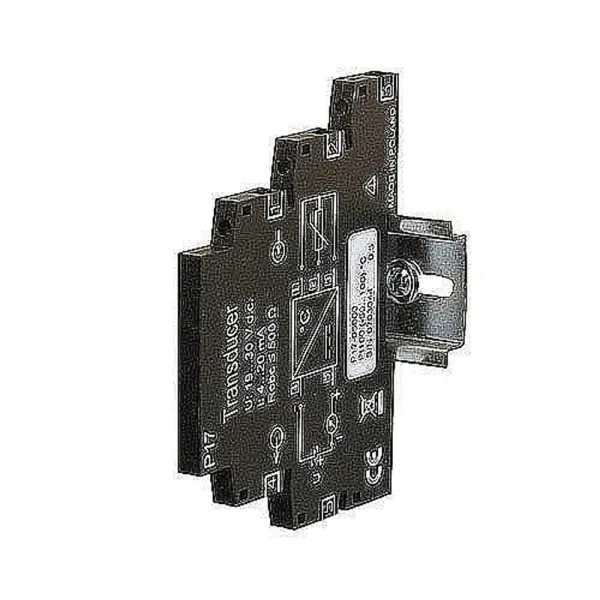

PCE Instruments Signal-Converter (PCE-P17U) is designed to convert 0-10V voltage signals into a standardized 4-20 mA current output, ensuring seamless integration with displays, controllers, and recorders. This compact and efficient device operates via an electricity loop, eliminating the need for an external power supply.
The robust design supports conductor cross-sections from 0.2 mm² to 2.5 mm² (AWG24-12) and operates efficiently in ambient temperatures ranging from -20 °C to +65 °C. This converter ensures precise and reliable signal transmission, making it an essential component in industrial automation.
- Specifications and Dimensions
- Input Signal: 0 … 10 V
- Output Signal: 4 … 20 mA
- Load (RLOAD): Max. 500 Ω
- Conductor Cross-Section: 0.2 mm² … 2.5 mm² (AWG24-12)
- Mounting Width: 6.2 mm
- Power Supply: 19 … 30 V DC
- Weight: 80 g
- Ambient Temperature: -20 °C … +65 °C
- Ambient Humidity: <95% non-condensing
- Dimensions: 77.5 x 6.2 x 100 mm
- Key Features and Benefits
- Converts 0-10V signals into standardized 4-20 mA current output
- Compact design with a slim installation width for efficient DIN rail mounting
- Operates via electricity loop, eliminating the need for an external power supply
- Reliable performance across various industrial automation applications
- Simple installation and integration with controllers, recorders, and displays
- Includes
- 1 x Signal Transducer PCE-P17U
- 1 x User Manual
