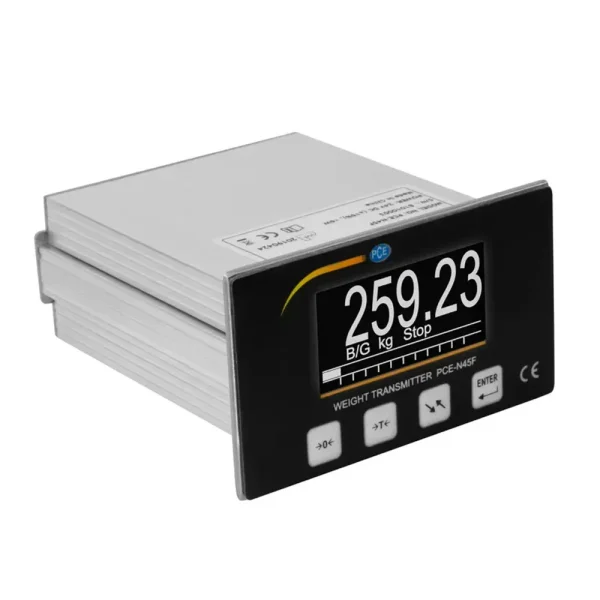

PCE Instruments Weight Indicator (PCE-N45F) is a versatile device designed to interface with load cells, force sensors, and weighing platforms utilizing strain gauge technology. It supports both 4 and 6-wire connection methods, allowing for precise calibration and adjustment directly through its user-friendly menu interface.
Equipped with an OLED display, the indicator provides clear readings of measurements such as weight, force, and torque. Its multiple rear connections include four NO relays and a potential-free digital input, enabling the initiation of various processes.
- Specifications and Dimensions
- Signal Input Range: 0 … 10 mV
- Sensitivity: 2 mV/V at 5V
- Minimal Sensitivity: 0.9 μV/D
- Supply Voltage for Measuring Cell: 5V
- Number of Measuring Cells: 1 … 6x 350 Ohm
- Display: OLED 128 x 64 pixels
- Units: g, kg, t, kN, N, Nm
- Measuring Rate: 200 Hz
- Electrical Connections: Screw terminals for 1 … 1.5 mm² wires
- Power Supply: 24V DC, < 6W
- Degree of Protection: Front IP65
- Panel Cutout Size: 92 x 44 mm
- Dimensions: 110 x 62 x 119 mm / 4.3 x 1.3 x 4.7 in
- Weight: Approximately 440 g / < 1 lb
- Operating Conditions: -10 … 40°C / 14 … 104°F, max 95% rh
- Key Features and Benefits
- High-contrast OLED display ensures clear visibility of measurements.
- Compatible with various sensors, enhancing measurement flexibility.
- Multiple relay outputs and digital inputs allow for customizable process control.
- Analog output enables seamless integration with other systems for data transmission.
- Robust design with IP65 front protection ensures durability in demanding environments.
- Includes
- 1 x Indicator PCE-N45F
- 1 x Sealing tape
- 1 x User manual
