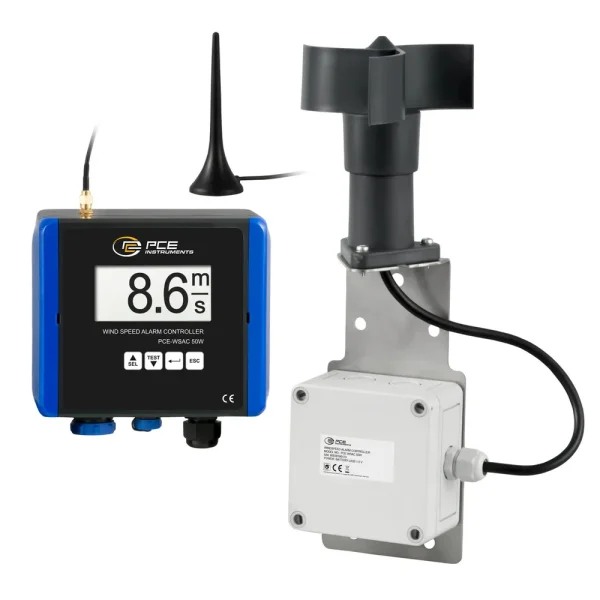

PCE Instruments Wind Speed Alarm System is designed for precise wind monitoring in industrial environments such as construction cranes, wind turbines, and other applications requiring reliable wind speed measurement. It ensures real-time monitoring of wind conditions and provides alarms when preset thresholds are exceeded.
Equipped with a robust radio transmission system, this wind speed alarm controller allows for wireless monitoring with a range of up to 750 m / 2500 ft in open fields and up to 60 m / 200 ft when installed indoors. The system features a backlit LCD display, an integrated alarm relay, and an analog output for seamless data transfer to external controllers.
- Specifications and Dimensions
- Measuring Range: 4 … 180 km/h
- Minimum Start Speed: 8 km/h
- Accuracy: ±1 km/h (4 … 15 km/h), ±3% (16 … 180 km/h)
- Radio Frequency: IEEE 802.15.4 ISM 2.4 GHz
- Analog Output: 4 … 20-mA
- Maximum Input Impedance: 500 Ω
- Resolution of the Analog Output: 10 bits
- Accuracy of the Analog Output: ±1.5%
- Alarm Relay: Max. 250V AC, 8A
- Display: 128 x 64 pixel backlit LCD
- Housing Material: Robust plastic casing
- Ball Bearings: Stainless steel X65Cr13
- Protection Class: IP65
- Operating Temperature: -20 … 70°C / -4 … 158°F
- Storage Temperature: -35 … 70°C / -31 … 158°F
- Weight (with standard bracket): About 680 g / 1.5 lbs
- Weight (with self-leveling bracket): About 900 g / 2 lbs
- Dimensions (Controller): 145 x 95 x 125 mm / 5.7 x 3.7 x 4.9 in
- Dimensions (Wind Sensor): 320 x 110 x 100 mm / 12.6 x 4.3 x 3.9 in
- Key Features and Benefits
- Real-time wind speed monitoring with adjustable alarm thresholds
- Pre-alarm and main alarm with visual and audible alerts
- Displays both current and average wind speed over 2 or 5 minutes
- Radio transmission allows for remote monitoring
- Durable IP65-rated housing for protection against environmental conditions
- Backlit LCD screen for clear visibility of wind speed data
- Supports integration with external control systems through analog output
- Includes
- 1 x Wind Speed Alarm Controller
- 1 x Wind Sensor
- 1 x Self-Leveling Additional Bracket
- 1 x Radio Antenna
- 1 x Battery Monocell D 1.5V DC
- 1 x User Manual
