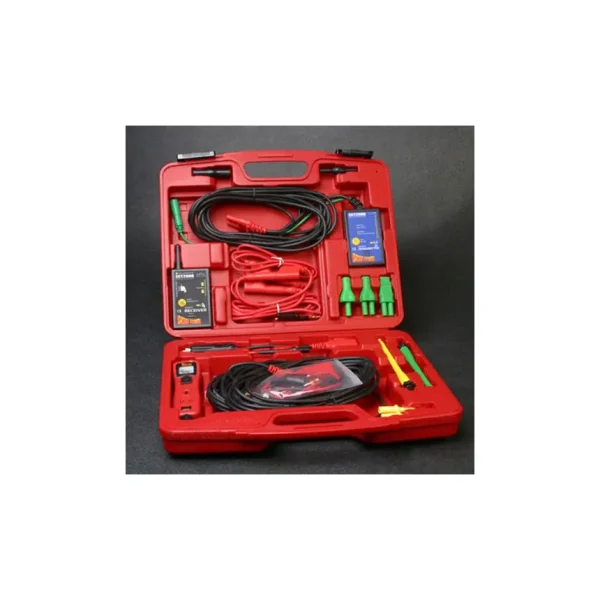

Quickly check components for continuity as well as identify positive, negative and open circuits without re-polarizing hook-up clips
- 2 – white LEDs that flood the work area with bright light
Specifications:
- Maximum Voltage on Probe Tip: ± 200 Volts Relative to the Negative Battery Clip
- Probe tip resistance to ground 130KO Computer Safe:0.1mA floating tip. Voltage range: 12-24v
Power Probe Mode (Mode 1)
- DC Voltage Measurement:0 to 70 Volts (in 1/10th increments)
- AC Voltage Measurement:0 to 70 Volts Peak to Peak
- (See Peak to Peak & Threshold Setting Mode 5)
- Square Wave Input Response:15 Hz to over 500KHz
- Sine Wave Input Response:35 Hz to over 250KHz
- Continuity to Ground:Greater than 20K Ohms – Display is Blank
- Less than 20K Ohms:Display reads 0.0
- Less than 2K Ohms:Display reads 0.0 and Green Led is On
Min (Mode 2) & Max (Mode 3)
- Voltage Measurement:0 to 70 Volts
- Single Event Capture:Less than 200 Micro Second Pulse Width
- Repetitive Events:Less than 1 Micro Second Pulse Width
Peak to Peak Mode (Mode 4)
- 0 to 70 Volts P-P
- Square Wave Input Response:4 Hz to over 500KHz
- Sine Wave Input Response:4 Hz to over 250KH
Peak to Peak Mode Threshold Setting (Mode 5)
- 0.2, 0.5, 1, 2, 5, 10 & 50 When the Peak to Peak Voltage on the Probe Tip exceeds this threshold then the display is Peak
- to Peak AC rather than DC.
- Storage temperature:-40°C (-40°F) to 70°C (158°F)
- Operating temperature:-20°C (-4°F) to 60°C (140°F)
Circuit Breaker
- 8 amp thermal response – manual reset
- 8 amp=No trip
- 10 amps=20 min.
- 15 amps=6 sec.
- 25 amps=2 sec.
- Short circuit=0.3 sec.
AMP Ratings for Probes, Leads and Adapters
- 1, 3, 6′ Leads:30 amps
- Alligator Clip Lead:20 amps
- Male-Male Adapter:30 amps
- Female-Female Adapter:30 amps
- Small Piercing Probe:10 amps20-28 Gauge
- Large Piercing Probe:20 amps8-18 Gauge
- Power Probe Tip:30 amps
