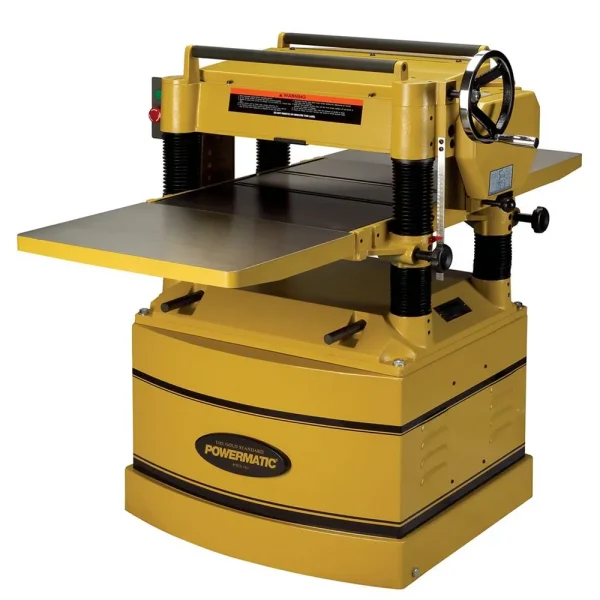

The Powermatic 209 Model 5HP 1PH 20″ Planer w/ 4 HSS Knives (1791296) is a robust machine designed for professional woodworkers and workshops. With its powerful 5 HP motor, it can effortlessly handle challenging materials with a maximum planing width of 20 inches and a maximum thickness of 8 inches.
KEY FEATURES AND BENEFITS:
- Powerful 5 HP motor for heavy-duty planing.
- 20-inch maximum planing width ideal for wide boards.

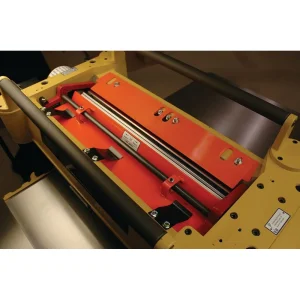

- Four HSS knives rotate at 5,000 RPM for clean finishes.
- Cast iron tables with extensions create a large working area of 55-1/2″ x 20″.
- Four feed speeds (24 & 31 FPM; 16 & 20 FPM) for versatility.
- Fully enclosed base cabinet with integrated casters for easy mobility.
- 5-inch dust port for efficient dust collection.

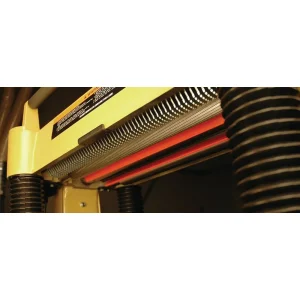

- Anti-kickback fingers and pressure bar ensure operator safety.
- Chrome-plated ergonomic handwheel for smooth adjustments.
- 5-year warranty for peace of mind.
SPECIFICATIONS:
- Model: 209
- Motor: 5 HP, 1-phase
- Maximum Planing Width: 20 inches
- Maximum Planing Thickness: 8 inches
- Cutterhead Speed: 5,000 RPM
- Table Size: 55-1/2″ x 20″ (with extensions)
- Feed Speeds: 24 & 31 FPM; 16 & 20 FPM
- Dust Port Diameter: 5 inches
- Electrical Requirements: 230V
HOW TO USE:
- Ensure the planer is placed on a stable and level surface.
- Connect the planer to a 230V power supply.
- Adjust the feed speed based on the material and desired finish.

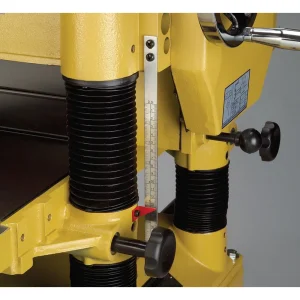

- Set the depth of cut using the chrome-plated handwheel.
- Feed the material through the planer, ensuring even contact with the knives.
- Monitor the operation and make adjustments as needed for optimal results.
- After use, clean the machine and perform routine maintenance to ensure longevity.
BENEFITS OF USING Powermatic 209 Model 5HP 1PH 20″ Planer w/ 4 HSS Knives (1791296):
- Effortlessly handles wide and thick materials with its powerful motor.
- Provides smooth and clean finishes with the four HSS knives.
- Offers versatility with multiple feed speeds for different woodworking tasks.
- Ensures operator safety with anti-kickback features and a fully enclosed base.
- Easy to move around the workshop with integrated casters.
- Connects easily to a dust collection system for a cleaner work environment.
FEATURES:
- Powerful 5 HP motor
- 20-inch maximum planing width
- Four HSS knives
- 5,000 RPM cutterhead speed
- Cast iron tables with extensions
- Four feed speeds (24 & 31 FPM; 16 & 20 FPM)
- Fully enclosed base cabinet with casters
- 5-inch dust port
- Anti-kickback fingers and pressure bar
- Chrome-plated ergonomic handwheel
