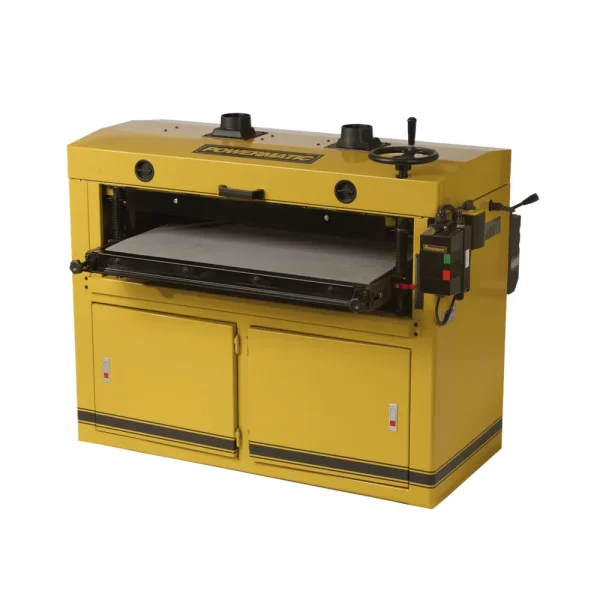

The Powermatic DDS-237 Model 10HP 37″ Dual Drum Sander (1791321) is a high-performance dual drum sander designed for professional woodworkers and production shops. This heavy-duty machine boasts a powerful 10-horsepower motor that delivers exceptional sanding capability for even the most demanding tasks.
KEY FEATURES AND BENEFITS:
- Powerful 10 HP motor for high-performance sanding
- Dual steel drums with hard durometer rubber coating for a flat, mar-free finish
- Independently adjustable rear drum for precise fine-tuning
- Two-speed gearbox (8 & 12 feet per minute) for versatile sanding options
- Full-size cast iron table for solid and stable woodworking platform
- Forward/reverse poly conveyor belt for even material feeding
- Dual dust ports with directional baffles for efficient dust collection (1200 CFM minimum required)
- Heavy steel cabinet minimizes vibration and provides storage space
SPECIFICATIONS:
- Maximum Board Width: 37 inches
- Minimum Board Length: 9 inches
- Maximum Board Thickness: 5-1/4 inches
- Drum Diameter: 6 inches
- Drum Length: 37 inches
- Drum Speed: 1700 RPM
- Conveyor Motor: 1/4 HP
- Dust Port Diameter: 4 inches (dual ports)
- Motor Power: 10 HP
- Motor Voltage: 230/460V (three-phase)
- Overall Dimensions: 60 x 45 x 45 inches
HOW TO USE:
For optimal operation of the Powermatic DDS-237 Model 10HP 37″ Dual Drum Sander, follow these steps:
- Adjust the rear drum for precise sanding depth.
- Select the appropriate speed on the gearbox (8 or 12 feet per minute).
- Ensure the cast iron table is level using the jackscrews and chain drive timing.
- Turn on the machine and feed material evenly using the poly conveyor belt.
- Monitor dust collection through the dual ports to maintain cleanliness.
BENEFITS OF USING Powermatic DDS-237 Model 10HP 37″ Dual Drum Sander (1791321):
- Exceptional performance for production sanding applications
- Robust construction ensures durability and stability
- Efficient dust collection system maintains a clean work environment
- User-friendly design with adjustable features for precise sanding
