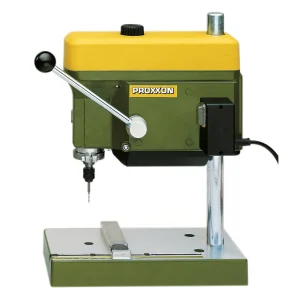

Proxxon Bench Drill Press Tbm 115, Green (38128)

PROXXON Bench Drill Press TBM 115, 38128 , Green

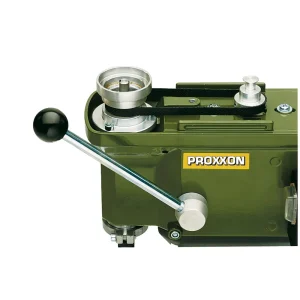

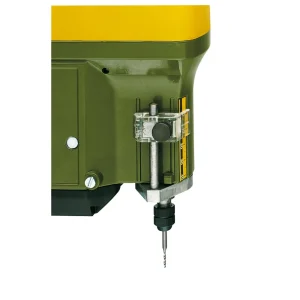

Proxxon Bench Drill Press TBM 115 – This 3 speed drill press excels at drilling micro holes down to 1/64 inch (0.5 millimeters). The unit offers a high quality machined work table of ribbed die cast aluminum, 8-1/2 inch x 4-3/4 inch in side. It provides an adjustable parallel fence with scale. The solid high chrome steel column is 11 inches high and is 4/5 inch in diameter. The powerful motor is built into the super stable die cast head of the machine, runs very quietlyand has a long life expectancy. The power transmission by 3 step aluminum pulley and flat belt provides 3 spindle speeds of 1800, 4700, 8500 rpm. This allows triple torque and lower speeds. The chrome feed lever has a practical adjustable drilling depth gauge. The spindle is free of play because of the 3 high quality ball bearing assemblies. Spindle is recessed for the insertion of Micromot steel collets but also threaded for attaching drill chucks with 3/8 inch thread. The spindle has an extremely high rotational accuracy and a 1-3/16 inch (30 millimeter) feed. The quill diameter is 1-1/4 inch with return spring; the throat depth column to spindle is 5-1/2 inches. The unit provides quick coarse adjustment of the headstock via the clamp lever. Maximum height work table to spindle is 5-1/2 inches.

• Competent drilling of micro holes down to1/64″ (0.5 mm) with extremely high rotational accuracy
• High quality machined work table of ribbed die-cast aluminum (work table size 8 1/2″ x 4 3/4″ (220 x 120mm))
• 3 spindle speeds of 1,800, 4,700 and 8,500rpm allowing triple torque at lower speeds
• Quill diameter 1 1/4″ (32mm) with return spring, throat depth (column to drill spindle) 5 1/2″ (140mm)
• Scope of delivery: 1x PROXXON Bench Drill Press TBM 115 including MICROMOT Steel Collet Set. Part number: 38128

Specifications:

• Brand: Proxxon
• Model: 38128
• Color: Green
• Length (cm): 32
• Width (cm): 24
• Height (cm): 13
• Weight (g): 3651
