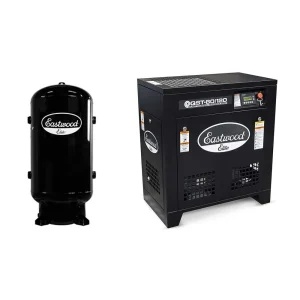

QST 80/120 Scroll Compressor and 80 Gallon Air Tank Kit
QST 80/120 Scroll Compressor and 80 Gallon Air Tank Kit
QST 80/120 Scroll Compressor and 80 Gallon Air Tank Kit - view 2
QST 80/120 Scroll Compressor and 80 Gallon Air Tank Kit - view 3
QST 80/120 Scroll Compressor and 80 Gallon Air Tank Kit - view 4
Other

QST 80/120 Scroll Compressor and 80 Gallon Air Tank Kit

Original price was: $5,999.99.Current price is: $113.02.

Availability: 5 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: GTC-021647
CATEGORY: Other
Description

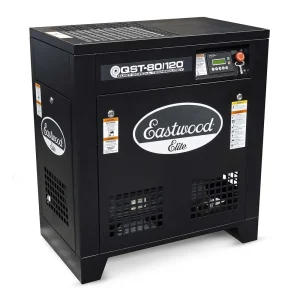

Eastwood ELITE QST® 80/120 Scroll Compressor

Own your own business?? Meet your new silent partner.

  • Innovative – Direct Drive Cast Iron Scroll Pump
  • Integrated Air Cooler – Multi-stage oil filtration system
  • Low Noise Level – Quiet Scroll Technology and only emits 62DB +/- 3Bd
  • Powerful – 11 HP Motor delivers 31.8 SCFM @ 90 PSI Air Output
  • Dependability – 100,000 hour pump life, with 100% Duty cycle

“The shop is quiet and it fills so fast.” – Mike Phillips – Phillips Hot Rod & Custom

Delivers More Power for less the cost of other air compressors

Our Elite 80/120 Scroll Compressor is ideal for the professional automotive repair and body shops . With its dependable, long-lasting construction and affordable price compared to other big brands, our R&D guys have crafted the ideal compressed air source. Read more about the advantages of scroll compressors below or call our experts. We back them with a three-year warranty and 60-day money-back guarantee so you can Do the Job Right.

Quiet Technology

  • As low as 62DB +/- 3Bd* at 1 meter – No louder than a typical conversation!
  • Comparable in noise to your home A/C unit
  • Quieter than your air tools

*Using standard sound level testing conditions. Results may vary based on compressor location and environment.

Powerful Performance

  • 3500 RPM 11 Horsepower Industrial Scroll Pump produces 31.8 SCFM @ 90 PSI Air Output – enough air for a production shop
  • Comparable in performance to units costing 3x as much
  • Innovative technology maximizes air delivery to all of your tools

Professional Grade

  • Direct Drive motor and pump eliminates belt noise, slippage and dust
  • CNC machined cast iron pump for extended life and max efficiency
  • Pressurized oil lubrication system assures 100,000 hour pump life

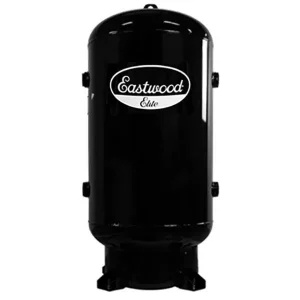

Eastwood Elite 80 Gallon Auxiliary Air Compressor Tank

This High quality 80 Gallon Air tank is a perfect match for our QST 80/120 3-phase Scroll Compressor, or for anyone looking for increased reserve air capacity in their air system.

  • Made in the USA
  • ASME Certified
  • 2 Year Warranty

Warranty

3 Year Warranty

Specifications

The Eastwood Elite QST® 80/120 Scroll Compressor is capable of a monstrous 31.8 SCFM output which means there is plenty of air to go around for the entire shop. With a 100% duty cycle and high output SCFM, this scroll compressor will handle everything that you throw at it and more. This compressor was developed with Quiet Scroll Technology and only emits 62DB +/- 3Bd. (Tested using standard sound level testing conditions. Results may vary based on on compressor location and environment.)

Compressor Specifications

Power Requirement: 208-240V, 60Hz, 29.8-amp, 3 phase
Motor Horsepower: 10 HP
Motor RPM: 3516
Sound Reading @ 10 ft. [1m] 62 +/- 3 db.*
Air Output: 31.8 SCFM @ 90 PSI [900 l/min. @ 6.2 bar]
Cut-in Pressure: 115 PSI [8 bar]
Cut-out Pressure: 145 PSI [10 bar]
Maximum Pressure: 145 PSI [10 bar]
Pressure Relief Valve Setting: 160 PSI [11 bar]
Oil Capacity: 74 oz. [2.2 liter]

Tank Specifications

Tank Specification, certification: ASME Certified Weld Flanges
Maximum Working Pressure 200 PSI
Side Port size (NPT): Four 1” NPT
Drain Port size (NPT): One 3/4’’ NPT
Lift Hook: 1” Top Center Mounted
Bolt Hole Dimension: 0.56”
Finish: Black Powder Coat
Mounting feature: Ring Base with Four Feet
Tank Size (Diameter x height): 24” Diameter x 53.43” tall
Weight: 265 lbs.
Country of Origin: USA

SCROLL TECHNOLOGY

HOW DO SCROLL COMPRESSORS WORK?
Read more at

WHY ARE SCROLL COMPRESSORS MORE EFFICIENT?
Read more at

In the Box

(1) QST® 80/120 Scroll Compressor
(1) 3/4” x 3-3/8” Pipe Nipple
(1) Side Panel Key
(1) 80 Gallon Air Tank
(1) Eastwood Instruction Manual

Guides & Accessories

Instructions

This unit will only work on 3 Phase Power

Don’t have 3 phase?

Safety Information

Please read and fully understand the instruction manual for this unit before operating. This unit will only work on 3 Phase Power.

The EASTWOOD ELITE QST® 80/120 SCROLL COMPRESSOR has been engineered and developed using breakthrough Scroll Pump technology. It operates at much lower sound and vibration levels while producing much greater air output with lower power demands than conventional piston-type air compressors. The unique Scroll Pump design also has fewer moving parts and significantly reduced friction for greater reliability and longer life.

Accessories

Already have a tank and just need the compressor?

You have a compressor and just need the air tank

Reviews

Rated 5 out of 5 by larry c from air compressor reviewawesome compressor super quite and builds air really fast could not be happier

Date published: 2022-11-14
Rated 5 out of 5 by jonNC from VERY Quiet! Easy installationWe have had this compressor for over 6 months now. It has been a fantastic upgrade. We have installed it in a 2,500 sq ft section of the warehouse (open), so sound really travels. The compressor is barely noticeable when it is running. We highly recommend it!

Date published: 2021-03-22
Rated 2 out of 5 by BigB from Great compressor poor customer supportI purchased one of the first 80/120 compressors with an air tank,about 8 months ago. It runs two paint booths and 3 shops just fine. The only issue I’ve had is the oil end of life alarm which has been alarming for over a month now …after numerous calls to tech support ,the alarm is still going off constantly and myself or my tenet has called numerous times to get it resolved. So in all we’ve spent at least 8 hrs of phone time and actual troubleshooting time and still have an alarm. For what I spent,I could have purchased two two stage compressors and been much happier.

Date published: 2021-06-16
  • y_2025, m_3, d_11, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_98022, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 7.91ms
  • REVIEWS, PRODUCT

Questions & Answers

Is there a speed ‘floor’ that the compressor can be run and still be efficient? I would like to convert to three phase via VFD and would like to have the motor run between 30 and 60 hz, depending on the current pressure level in the tank.

Asked by: C_squared
It’s not Eastwood’s intended use of the 80/120 compressor, but 20hz. At 20hz that motor will run at approximately 600RPM, and output 10 CFM. At 30hz the unit would operate at half speed and run efficiently.

Answered by: Bill G Tech Advisor
Date published: 2025-03-03

Does the 80/120 compressor have and auto shutoff that can be turned on? Want to run CNC machine into the night but want the air compressor to shut off at a certain time after machining is done

Asked by: NPT 72
Yes

Answered by: Anonymous
Date published: 2024-09-03

Does this use the same compressor as the 30/60? Is just the motor different between the two???

Asked by: Jwarns
Eastwood ELITE QST® 80/120 Scroll CompressorOwn your own business?? Meet your new silent partner.Innovative – Direct Drive Cast Iron Scroll PumpIntegrated Air Cooler – Multi-stage oil filtration systemLow Noise Level – Quiet Scroll Technology and only emits 62DB +/- 3BdPowerful – 11 HP Motor delivers 31.8 SCFM @ 90 PSI Air OutputDependability – 100,000 hour pump life, with 100% Duty cycle3-year warrantyEastwood QST® 30/60 Air Compressor Features:Innovative – Direct Drive Cast Iron Scroll PumpIntegrated Air Cooler – Multi-stage oil filtration systemLow Noise Level – As low as 63dBs*Compact Size – Performance of a 60 gallon in the size of a 30 gallonPowerful – 12.7 cfm @ 90 psiDependability – 100,000 hour pump life, 4 HP continuous duty motor, All steel pressure hard lines and hydraulic style flex lines3-Year Warranty – Guaranteed confidenceImproved Pressure Switch – This compressor includes an improved pressure switch that provides longer service in a wider variety of conditions.Includes Moisture Drain Kit – Improved performance and easy to service

Answered by: Anonymous
Date published: 2024-09-03

How many CFM is output at max PSI?

Asked by: Hotdog
Because this is a scroll compressor, it outputs the same SCFM of 31.8 at all pressures (including the max of 145psi).

Answered by: Nick BC
Date published: 2022-11-30

Eastwood recommends an 80 gallon tank, but is there a reason I can’t use the 60 gallon tank I already have? My air requirement is 20.5 cfm at 100 psi.

Asked by: Joel
This would work fine. The only down side is result is the unit cycling on/off more often since you have a lesser capacity.

Answered by: Nick BC
Date published: 2022-08-01

Would I need a dryer for this unit? If so will there be one available soon?

Asked by: Dan K
We offer many different air drying systems on our website.

Answered by: Nick BC
Date published: 2022-06-01

Curious like question asked 2 days ago. Does this unit condense water like regular 2 stage compressor would? Would you still need separator, air dryer, and refrigerate system for clean dry air? Thank you.

Asked by: Kalev
Yes, you would still need a air drying system.

Answered by: Nick BC
Date published: 2022-06-01

What size phase converter is needed?

Asked by: Scrambler
We recommended the unit be used on power company supplied 3 phase 208-240VAC. However, if a phase convertor must be used, we recommend: Pro-Line Rotary Phase Converter model PL-40. If another brand is used it must control output 3-phase voltage to within 5%, if not the compressor motor will go into a phase unbalance and shut down until voltage is regulated between each phase to within the maximum 5%.

Answered by: Mark R
Date published: 2022-07-23
