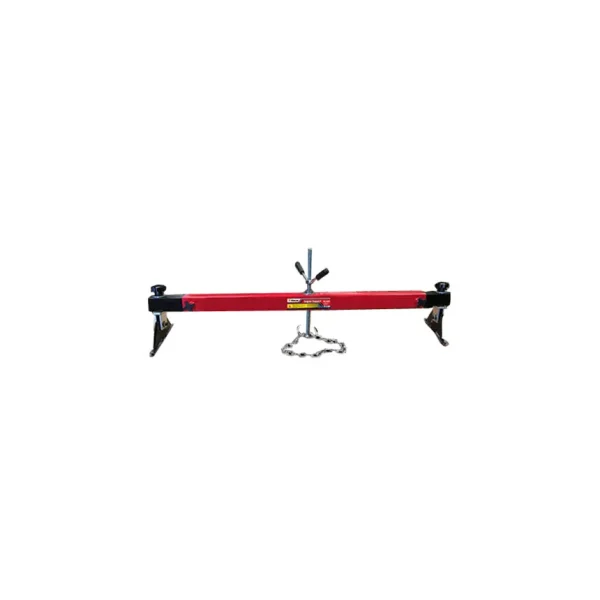

Ranger Engine Support – RST-500ES

An Engine Support that Saves Techs Time

The engine is the heart and soul of a vehicle. Don’t trust its care to anything but Ranger. If you’re replacing or servicing engine mounts but don’t want to hoist the entire engine to do so, save time and money with a superior-quality engine support beam. Professionals and DIY’ers both benefit from having an engine support hand for fast access to the engine.

The RST-500ES is designed for unparalleled adaptability: threaded adjustable chain hooks and telescoping side foot pads adjust to all manner of engine compartments. Wheel well to wheel well support provides a solid foundation for up to 1,500 lbs. of engine while you’re working on the transmission or dropping a sub-frame. This engine support is both easy to use and saves real time, every time. And we all know that in this business, time means money.

Features

• Straddles inner fender wells to support engines
• Adjusts to fit all vehicles
• Precisely positions engine for easy gear box and transmission removal
• Perfect for 4 and 6 cylinder engines
• Rubber foot pads prevent damage and holds load securely

Specifications

• Holding capacity:1,500 lbs. (680 kg)
• Maximum width:63″ (1,600 mm)
• Minimum width:40″ (1,016 mm)
• Screw travel:13″ (330 mm)
• Shipping weight:50 lbs. (23 kg)
• Shipping dimensions:41″ x 8″ x 3″ (1041 mm x 203 mm x 76 mm)
