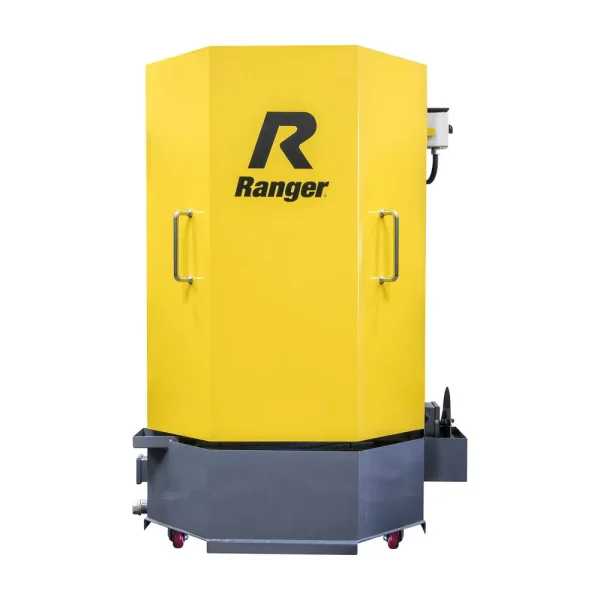

Ranger Parts Washer (RS-500D-601 (1-Phase))

Ranger Parts Washer (RS-500D-601 (1-Phase))

A large cabinet size and solution tank makes the Ranger RS-500D versatile and productive. By using an octagonal full opening door, Ranger enhanced access to the turntable to enhance the operator’s loading capabilities. Simple operating controls, brass nozzles, and a high-capacity 70 GPM pump demonstrate Ranger’s commitment to enhanced performance and productivity without a single sacrifice in quality.

Like all Ranger parts washers, the RS-500D is built to last. Ranger constructed the cabinet and door with heavy-duty 12-gauge steel and then coated it with an industrial two-step primer and powder coat finish. All-around performance, durability and improved operator convenience make the RS500D the definitive choice among professionals worldwide.

• Spray wash cabinet
• 66″ overall height
• 43″ inside height
• 30″ turntable diameter
• 50 gallon tank capacity
• 500 lbs. load capacity
• 0 – 60 minute timer
• 18 brass nozzles
• 12 gauge steel construction
• 75 PSI @ 70 GPM
• 6 kW heater
• 160° – 180° water temperature
• Non-marring caster wheels
• NEMA rated electrical panel
• Dual heaters
• Low water shutoff
• 208-230 volt
• 1 phase
• 60 hz

More Features

• Heavy-duty steel construction
• Removable tank screen
• Stainless oil skimmer
• Removable parts tree
• Powder coat finish
• Brass nozzles
• Full opening octagonal door
• Large drain pipe
• Heavy-duty rubber casters
• Friction-drive turntable system
• Gasket-free door
• Small parts basket
