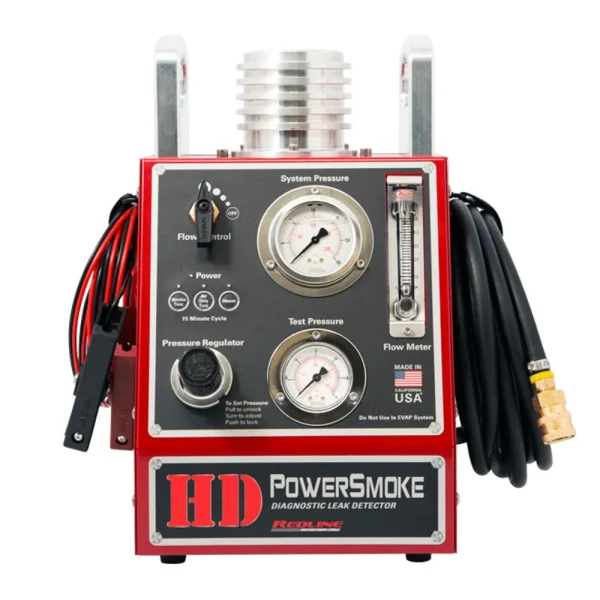

Redline Detection 95-0171 Hd Power Smoke Pro Diagnostic Leak Detector

Redline Detection 95-0171 Hd Power Smoke Pro

The HEAVY DUTY Diagnostic Leak Detector is designed specifically for HD Trucks, Buses, Commercial, Industrial, and Agricultural applications.

Offers both high pressure & variable pressure!

This patent pending technology was developed in collaboration with a big rig truck manufacturer and is currently being used by dealerships, repair centers, mobile technicians, fleet centers, etc. HD PowerSmoke is specifically engineered to provide the pressure and volume of vapor needed to test the integrity of HD intake systems and exhaust systems in one quick procedure, with the engine safely off.

Redline’s patent pending PowerSmoke Adaptors expand to seal off most every intake or exhaust system with every brand of heavy duty trucks as well as medium duty. Variable pressure, variable flow to replicate boost load and allow the technician to adjust flow as needed to find minuscule faults.

HD PowerSmoke offers the following:

• OEM Approved
• Specifically for HEAVY DUTY
• Variable Pressure | Variable Flow
• Utilizes adjustable test pressure from 2 to 20+ PSI (0.14 to 1.4+BAR)
• Compact, rugged design is built up of professional grade steel and billet aluminum
• Runs on shop air and 110-250V AC or 12V DC
• Over 40X Typical EVAP pressure
• Runs on Compressed Air
• Powered by 110-250 VAC or 12 VDC
• Free of Dyes & other Contaminants
• 2 – 20+ PSI Range
• Performs Decay/Leak Down Tests
• Only 19 lbs

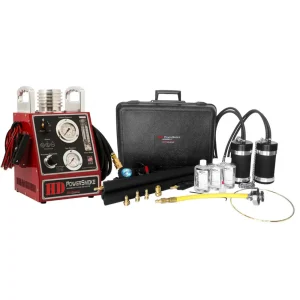

HD Power Smoke contents

• Power INTAKE™ Adaptor 3.9 in (10 cm),
• OEM-Approved Smoke Producing Agent,
• Block-Off Coupler
• Exhaust Stack Retention Hoop
• SmokeMeister Wand
• Tip Adaptor
• Halogen Inspection Light
• AC Power Cable
• Hex Key
• Cooling System Adaptor
• Oxygen Sensor Port Adaptor
• Temperature Sensor Port Adaptor
• Pressure Sensor Port Adaptor.
• Accessory Storage Case
