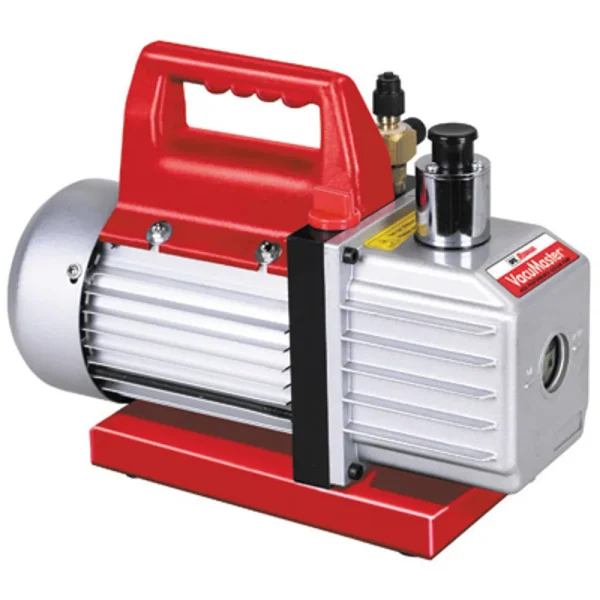

Robinair VacuMaster 2-Stage Vacuum Pump (15150) brings advanced technology and high-efficiency to refrigeration and air conditioning maintenance. This vacuum pump integrates a 2-stage rotary vane design, ensuring powerful, quiet operation and quicker moisture removal.
The Robinair 15150 is constructed from lightweight die-cast aluminum, with a heavy-duty motor that starts easily and operates efficiently. Key features include a top oil fill port for easy maintenance, an angled oil drain valve for clean oil changes, and an easy-view sight glass for quick oil checks.
- Specifications and Dimensions
- Free air displacement: 1.5 CFM
- Factory micron rating: 50 microns
- Stages: 2
- Intake fitting: 1/4″ MFL and 3/8″ Acme, plus 3/8″ FFL x 1/2″ Acme adapter
- Oil capacity: 7.4 oz. (219 ml)
- Motor size: 1/3 hp
- Voltage: 115V 60Hz
- Weight: 22 lbs. (10 kg)
- Dimensions: 9.5″ H x 4.75″ W x 12.5″ L (240 mm x 120 mm x 315 mm)
- Cord length: 6′ (1.8 m)
- UPC: 637335016231
- Warranty: One Year
- Approvals: CSA, as of June 2020
- Key Features and Benefits
- 2-stage rotary vane design for high vacuum capability and faster evacuation
- Heavy-duty motor ensures durability and efficient operation
- Cast aluminum construction provides a lightweight yet robust frame
- Includes comprehensive over-the-counter replacement warranty
